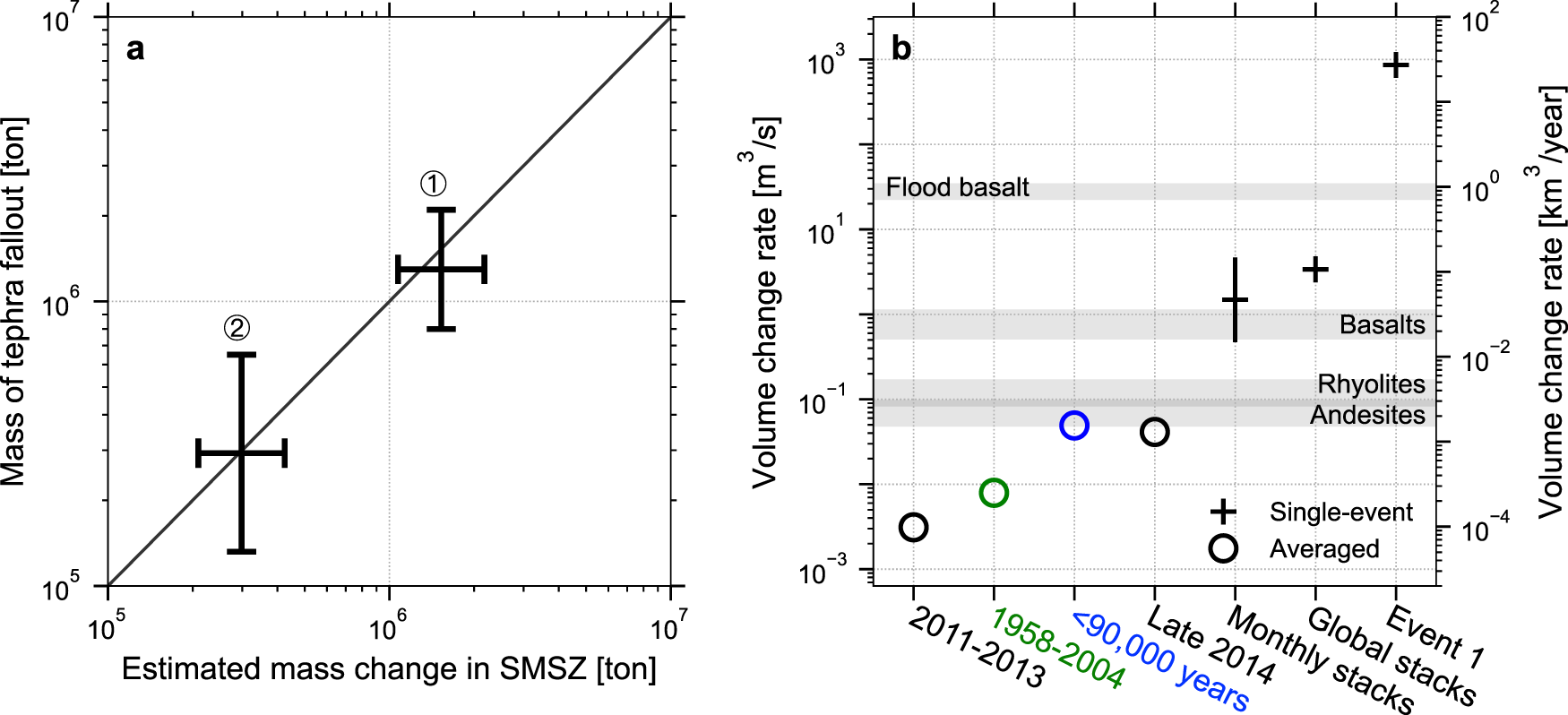

Fig. 6: Pre-eruptive mass change in the SMSZ versus retrospective tephra fallout mass and contrast of volume change rates across multiple time scales in Aso volcano.
From: Episodic transport of discrete magma batches beneath Aso volcano
a The observed volcanic output of the 2014 Strombolian and 2016 phreatomagmatic eruptions against the estimated mass change inside the SMSZ before the eruptions. Enclosed 1 and 2 correspond to the time windows defined in Fig. 5a. Horizontal bar shows the uncertainties of estimated mass change due to the magma compressibility (see text and Methods). Solid line shows the 1:1 reference line. b Comparing the single-event volume change rates (black cross) against the averaged volume change rates over 2011–2013 and late 2014 (black circles) (Fig. 5a), the geodetic data over 1958–200445 (green circle) and the geological analysis over post-caldera eruptions23 (blue circle). Global averaged volcanic output rates from White et al.80 are shown in the gray shaded regions.
