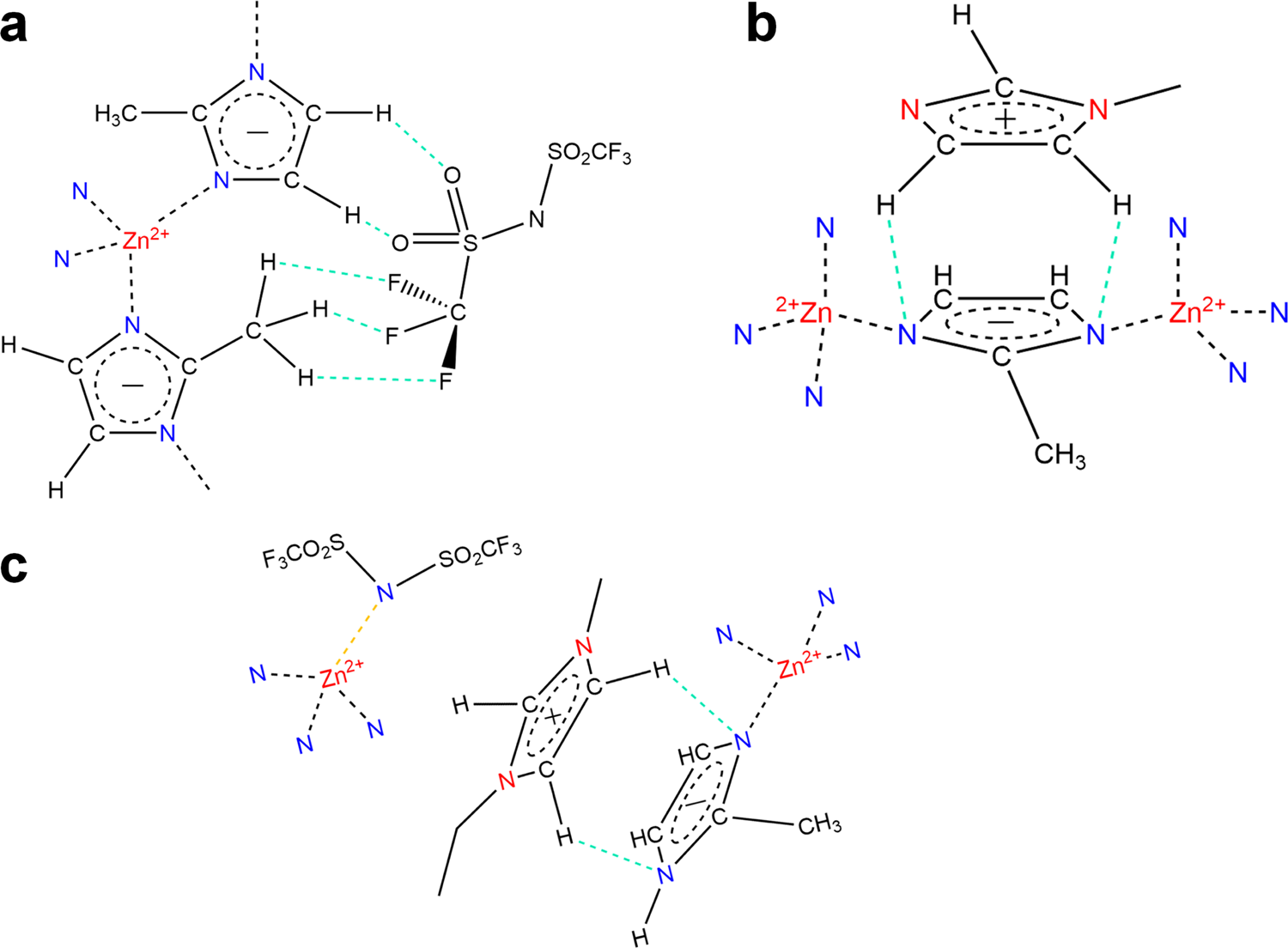

Fig. 6: 2D schematic of possible interactions between IL and ZIF-8.
From: Ionic liquid facilitated melting of the metal-organic framework ZIF-8
a Interactions with the IL anion; b Interactions with the IL cation. c Melting/amorphization of IL@ZIF-8 at 381 °C. Orange and green bonds represent Zn2+–N− bonding and H bonding between IL and ZIF-8, respectively. For a schematic view of the whole pore, see Supplementary Fig. 27.
