Fig. 2: Treg-derived CD73 is not essential for adenosine-mediated suppression of conventional CD4 T cells.

From: CD73-mediated adenosine production by CD8 T cell-derived extracellular vesicles constitutes an intrinsic mechanism of immune suppression

Fig. 2

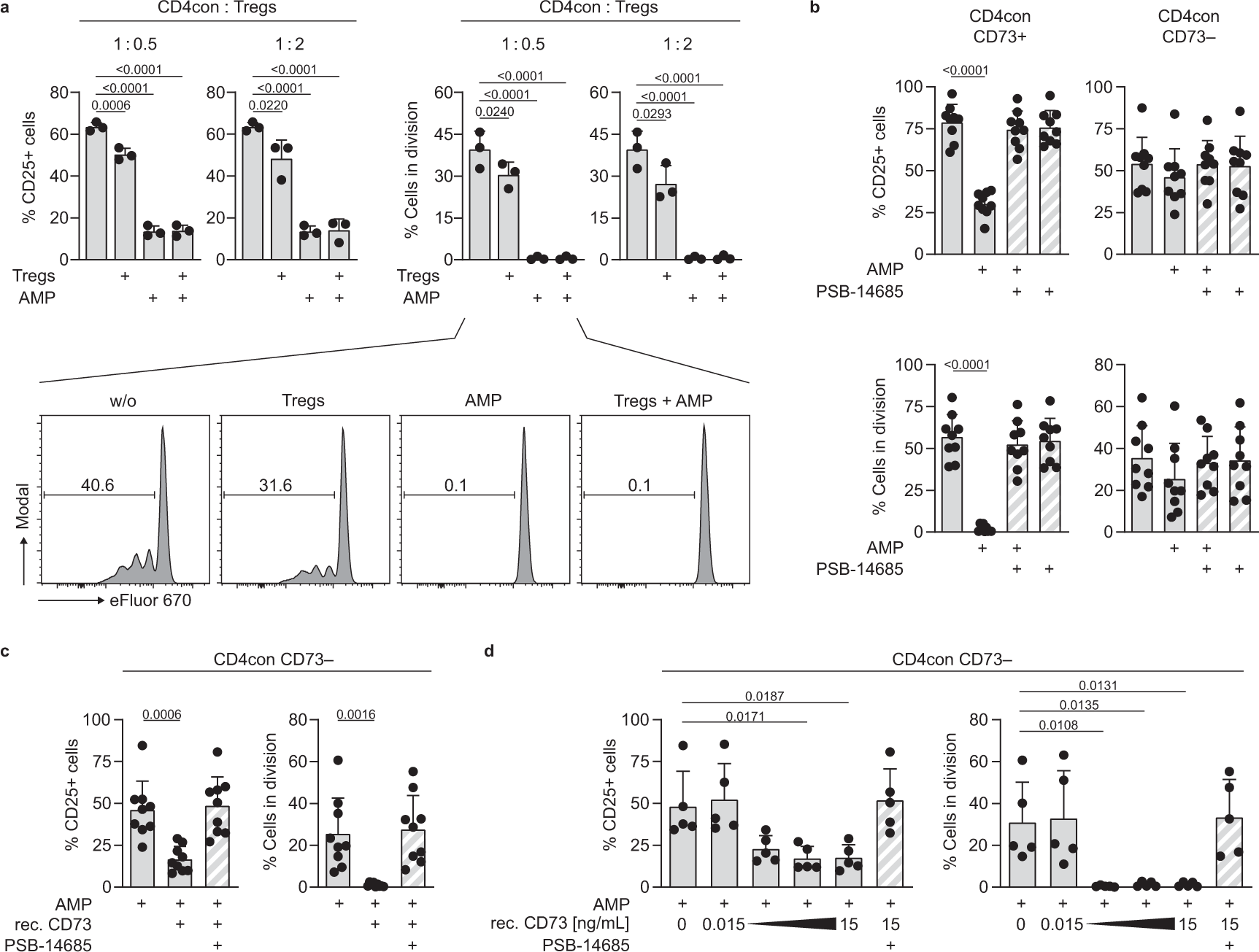

a–d CD4 responder T cells were stimulated with αCD3/αCD28 in the presence of the ADA inhibitor EHNA (10 µM). CD25 expression and proliferation were measured after 4 days by flow cytometry. a CD4con T cells were stimulated and incubated with AMP (50 µM) and Tregs in the indicated ratio. b CD4con T cells were sorted into CD73− and CD73+, the cells were incubated with AMP (50 µM) and the specific CD73 inhibitor PSB-14685 (10 µM). c CD4con CD73− T cells were incubated with AMP (50 µM), the specific CD73 inhibitor PSB-14685 (10 µM), and recombinant CD73 (15 ng/mL). d CD4con CD73− T cells were incubated with AMP (50 µM) and different concentrations of soluble recombinant CD73 (three tenfold serial dilutions starting with 15 ng/mL). PSB-14685 was used to block the highest concentration of recombinant CD73. Data were shown for a three, b, c nine and d five donors (mean ± SD). Ordinary one-way ANOVA with Dunnett’s multiple comparisons test was used to compare all conditions to cells treated with EHNA or EHNA and AMP (first bar).
