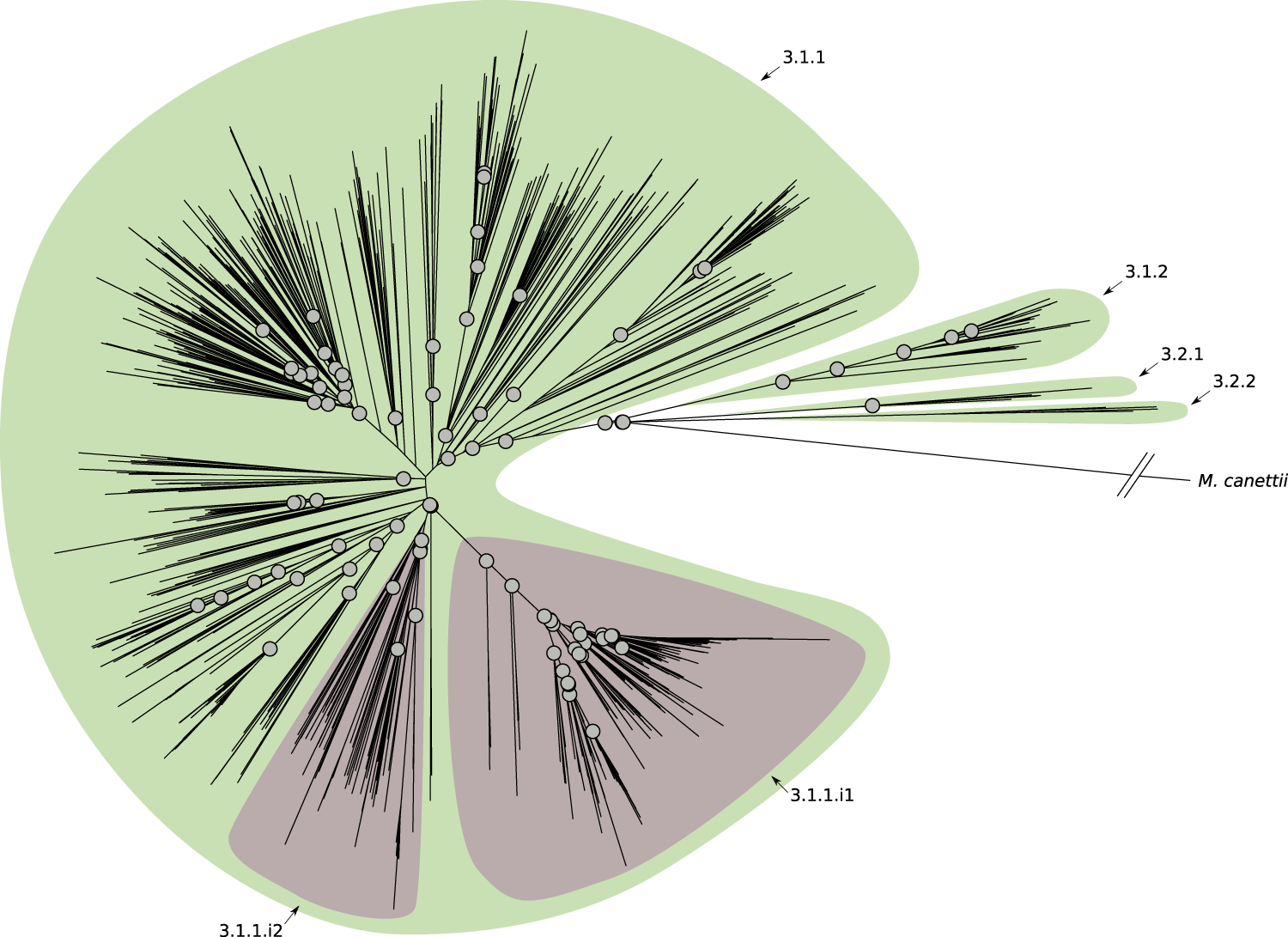

Fig. 2: Phylogenetic tree reconstruction of lineage 3 (binary tree).
From: Population structure, biogeography and transmissibility of Mycobacterium tuberculosis
Gray circles define splits where the FST (fixation index) calculated using the descendants of the two children nodes is greater than 0.33. The sub-lineages are defined by colored areas (green: sub-lineages described here; purple: internal sub-lineages). Source data are provided as a Source Data file.
