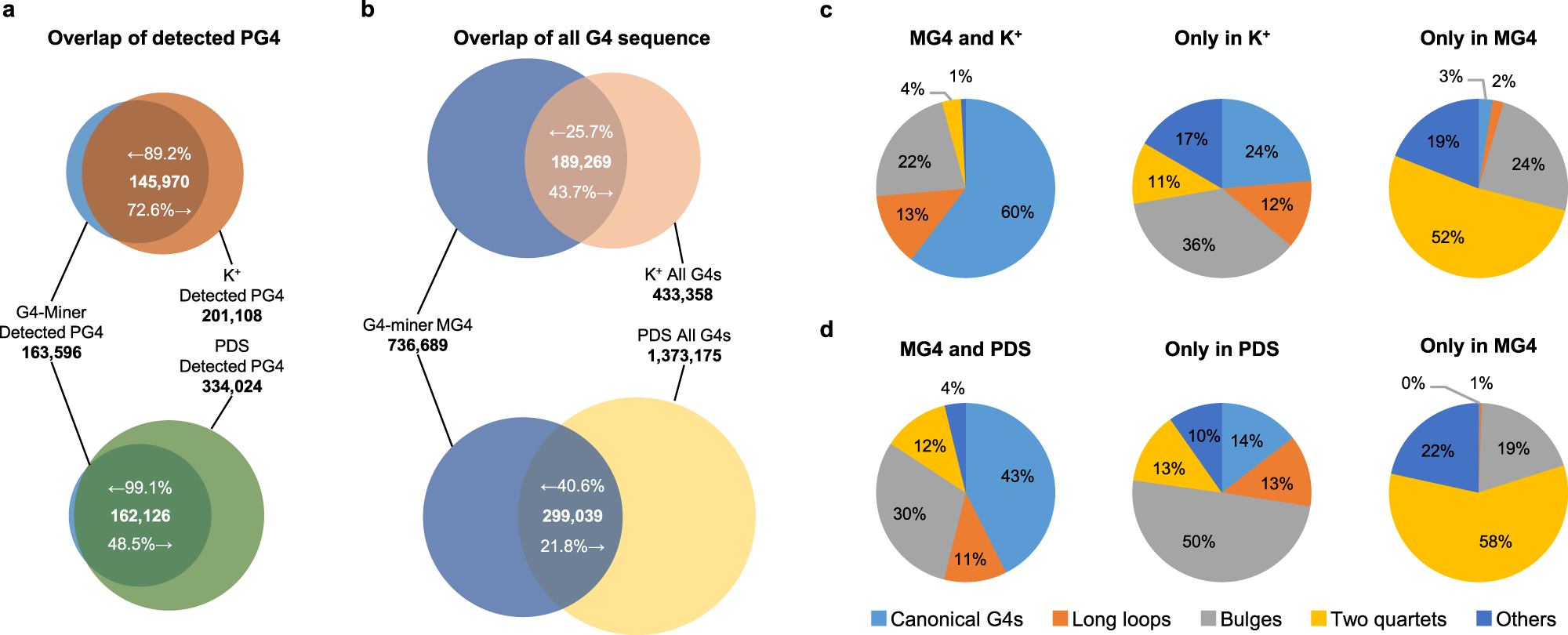

Fig. 4: Comparison with the result of the optimized G4-seq.
From: Direct genome-wide identification of G-quadruplex structures by whole-genome resequencing
a Overlap between PG4s that were detected in MG4s in standard sequencing buffers and K+ or PDS conditions26. b Overlap between MG4s in standard sequencing buffers and K+ or PDS conditions26. c Prevalence of G4 sequences detected both under K+ conditions and by G4-miner, only detected under K+ conditions and only detected by G4-miner. d Prevalence of G4 sequences detected both under PDS conditions and by G4-miner, only detected under PDS conditions and only detected by G4-miner.
