Fig. 3: Residual and negative emissions when global emissions reach net-zero.

From: Energy systems in scenarios at net-zero CO2 emissions

Fig. 3: Residual and negative emissions when global emissions reach net-zero.

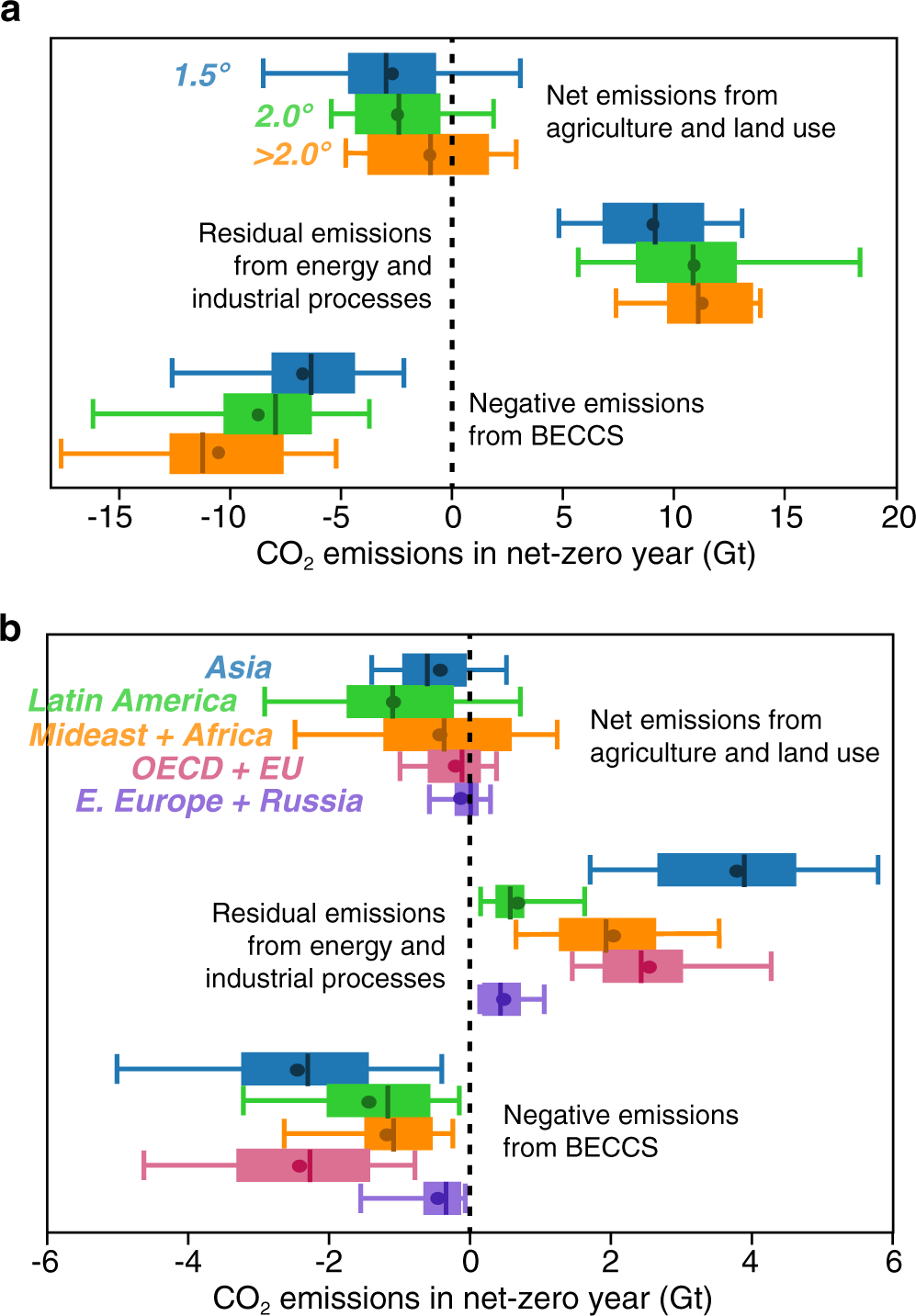

Residual and negative emissions in net-zero scenarios show global differences across different warming levels (a) and regions (b). In each case, the boxes show the range from 25th to 75th percentiles, whiskers show the 5th and 95th percentiles, and the lines and circles within the boxes denote the median and mean values, respectively.
