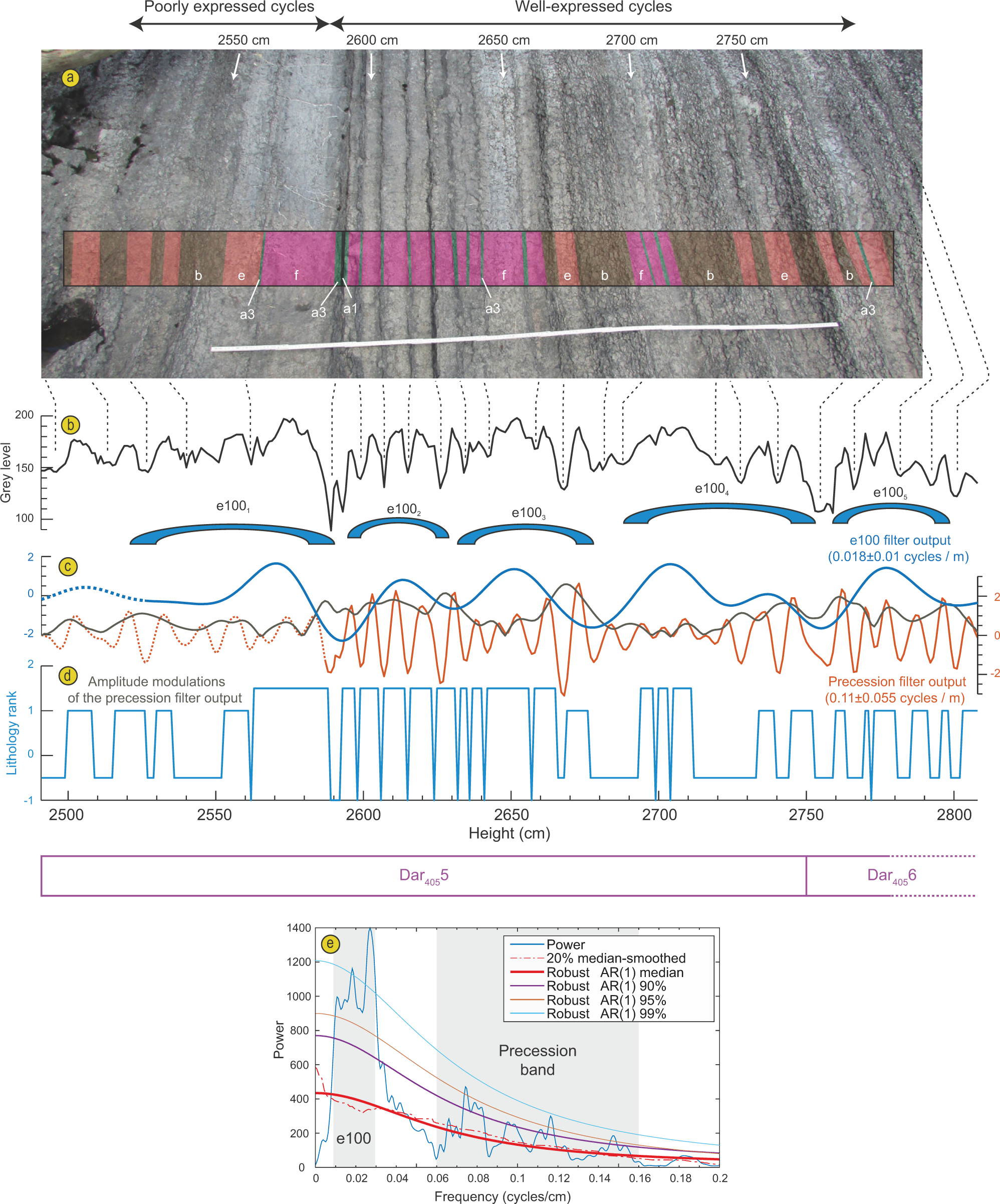

Fig. 5: Cyclostratigraphic analysis of a grey level signal.

a Photograph showing lithological variations, with corresponding lithofacies of Table 1. b Grey level signal. c Relevant filter outputs. d Lithology rank between 2500 and 2800 cm. e 2 pi MTM power spectrum of the grey level signal.
