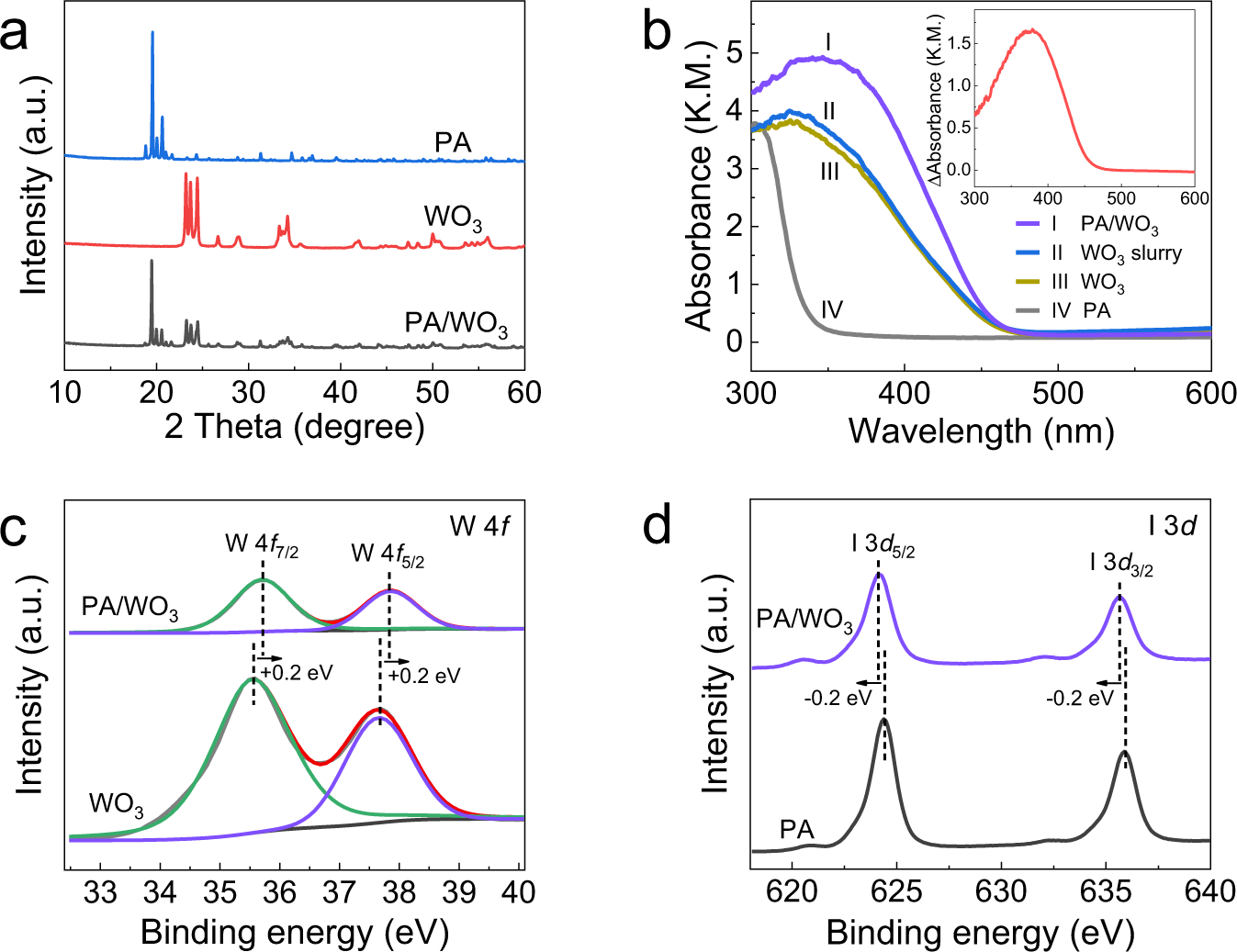

Fig. 4: Characterizations of PA, WO3, and PA/WO3.
a X-ray diffraction spectra. b Diffuse reflectance UV–visible absorption spectra (DRS) (Inset is the difference DRS spectrum which is obtained from the spectrum I minus the spectrum III). XPS spectra of c W 4f and d I 3d band.
