Fig. 4: Comparison of overall structures between X-ray crystal structures and cryo-EM structures.

From: C-Glycoside metabolism in the gut and in nature: Identification, characterization, structural analyses and distribution of C-C bond-cleaving enzymes

Fig. 4: Comparison of overall structures between X-ray crystal structures and cryo-EM structures.

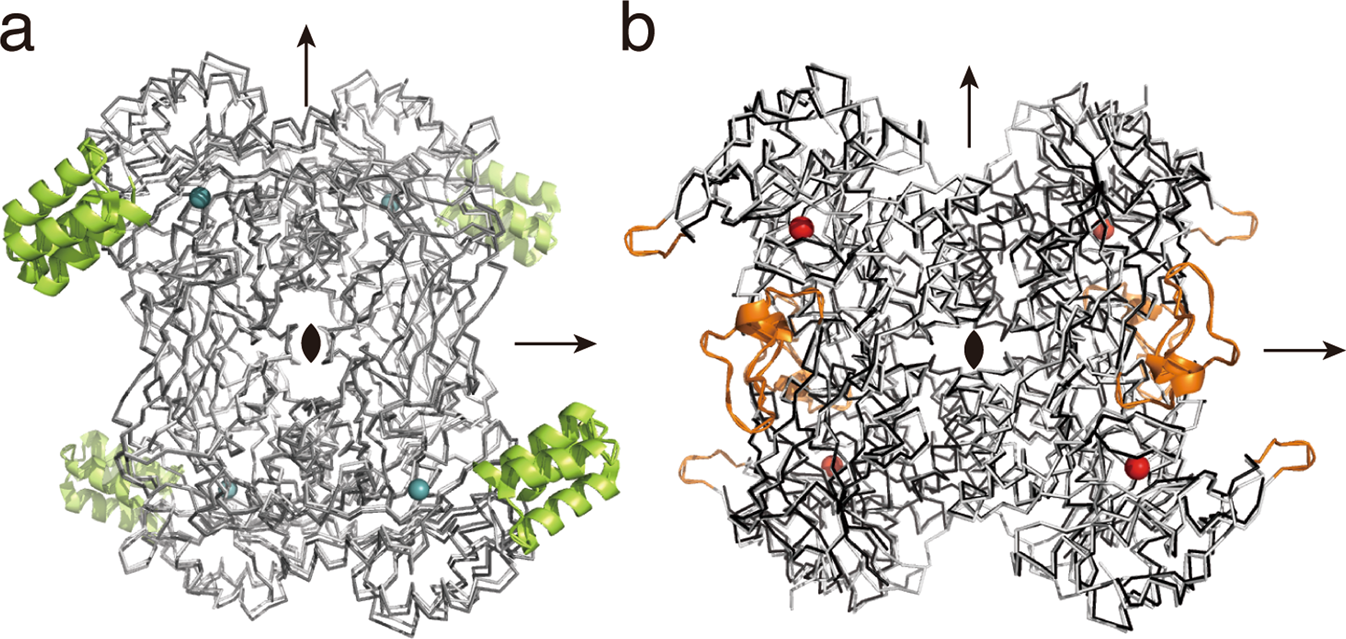

Comparison of X-ray crystal structures (pale gray) and cryo-EM structures (gray) of (a) PuCGD and (b) EuCGD (front view). Missing residues in cryo-EM structures are shown in (a) lime and (b) orange. Arrows represent approximate 2-fold axes.
