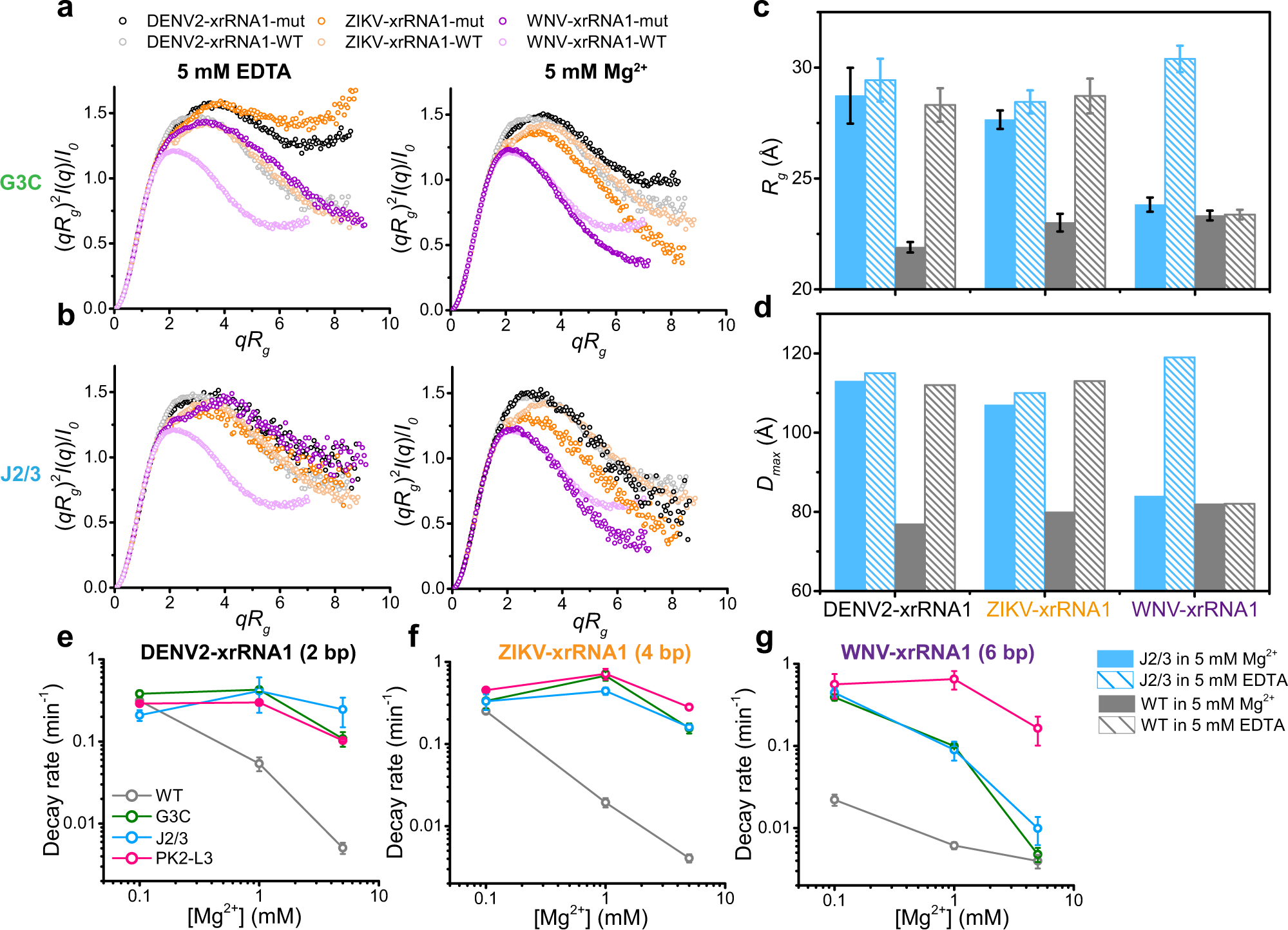

Fig. 5: Mutations at key tertiary motifs affect the structure and Xrn1 resistance of flaviviral xrRNAs.
