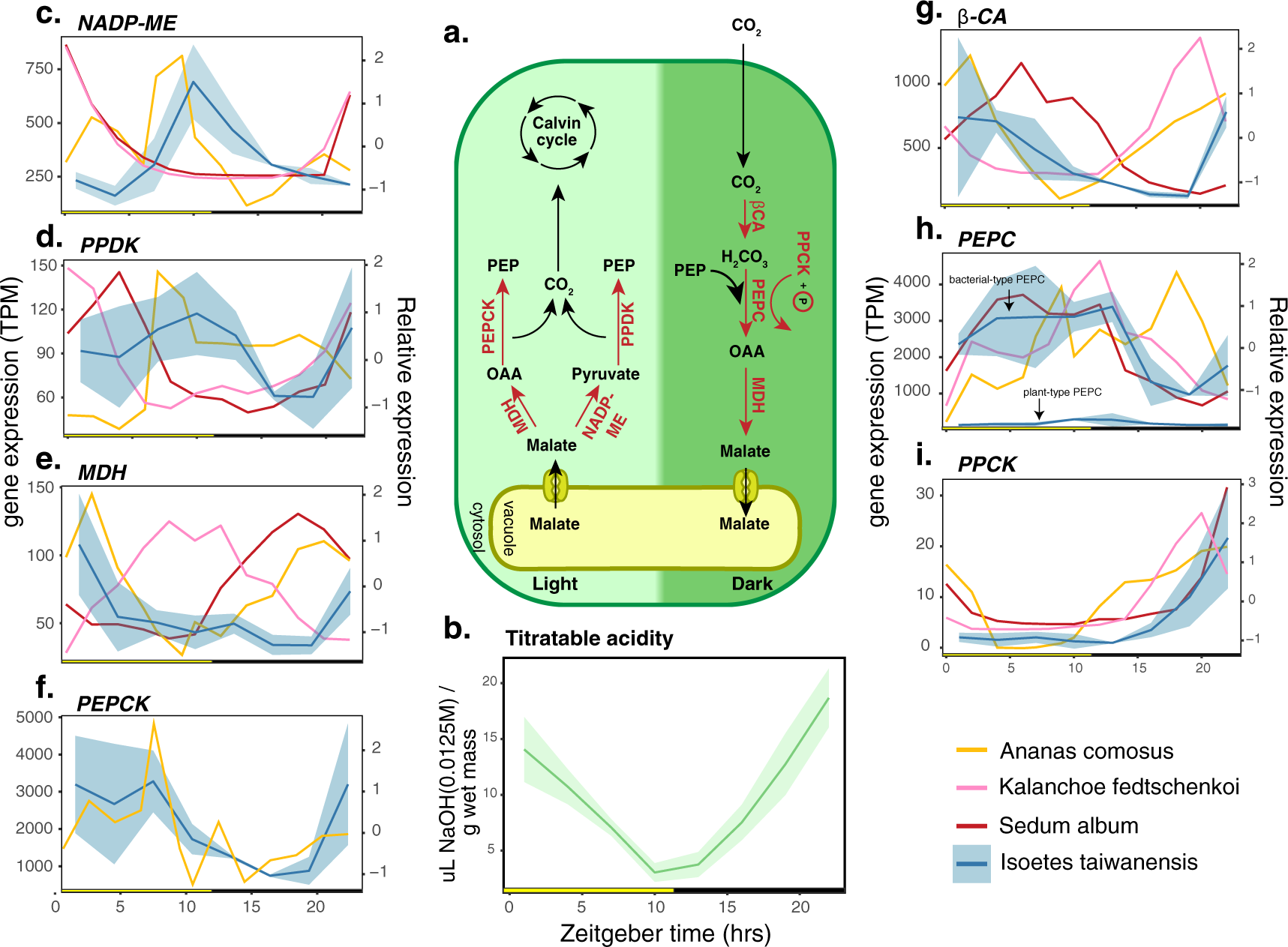

Fig. 3: Key CAM pathway genes and their expression patterns in I. taiwanensis.
From: Underwater CAM photosynthesis elucidated by Isoetes genome
a The CAM pathway with important reactions and their enzymes shown in red. b Titratable acidity in I. taiwanensis exhibited a clear diel fluctuation. Diel expression patterns for highlighted genes are shown for the day (c–f) and night reactions (g–i). Average of TPM normalized expression data for I. taiwanensis is plotted in blue with a shaded ribbon representing the standard deviation. Relative expression profiles for homologous, cycling genes in other CAM species are plotted for comparison. All times are displayed in hours after lights-on (Zeitgeber time). Locus IDs for genes used in expression plots is provided in Supplementary Data 3. Source data for I. taiwanensis are provided in Supplementary Data 2. Source data for the other taxa are provided as a Source Data file.
