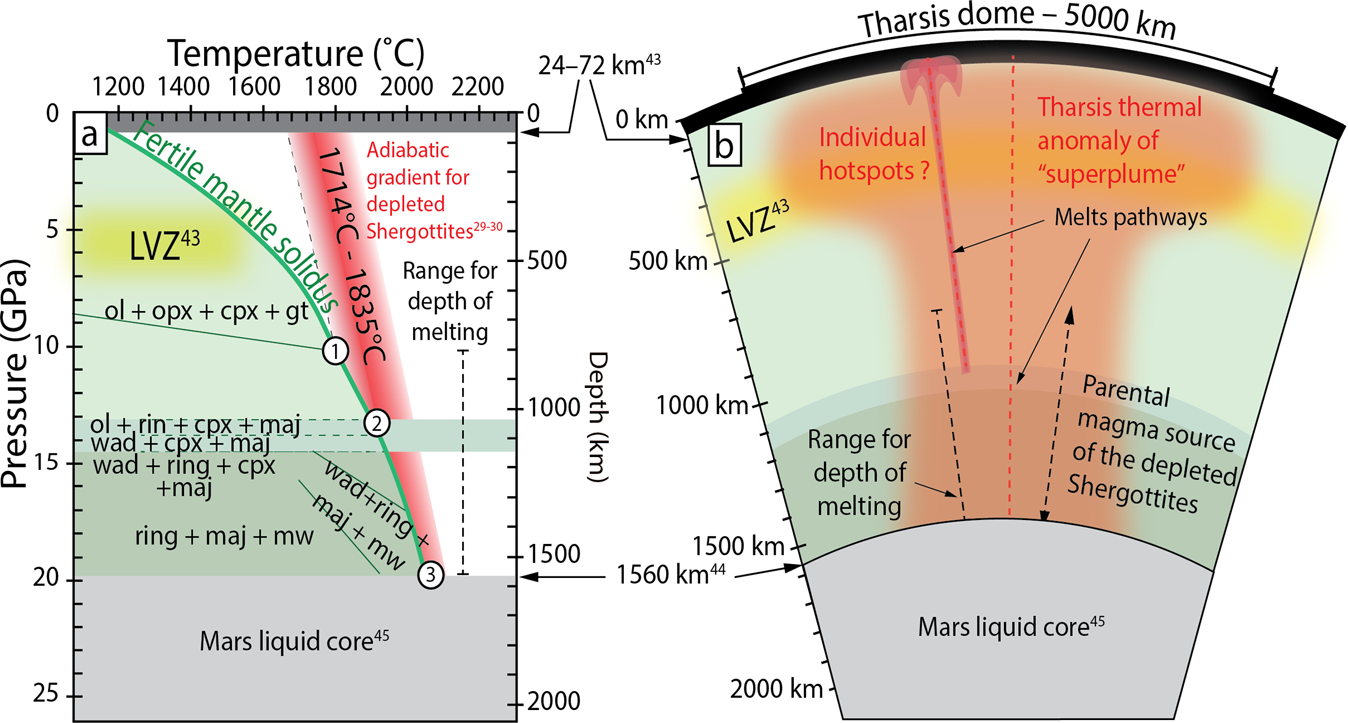

Fig. 4: Melting environment for the formation of the depleted shergottites.

a Pressure-temperature-depth phase diagram for the Martian mantle²⁸. The adiabatic range for the depleted shergottites (in red) extrapolated using mantle potential temperature^28,29,32, suggests that melting potentially occurs below 10 GPa (1), within the transition zone (2) and possibly down to the core-mantle boundary (3), i.e. between ~800 and ~1600 km. b Schematic cross-section of Mars below the Tharsis dome, showing the Tharsis superplume beneath the crust as well as the depth range of melting for the parental magmas of the depleted shergottites and potential melts pathways (red dashed lines). Structure of the Martian interior and layers thicknesses are inferred from SEIS (Seismic Experiment for Interior Structure) data on board of the InSight lander^80,81,82. ol olivine, opx orthopyroxene, cpx clinopyroxene, gt garnet, rin ringwoodite, wad wadsleyite, maj majorite, mw magnesio-wustite.
