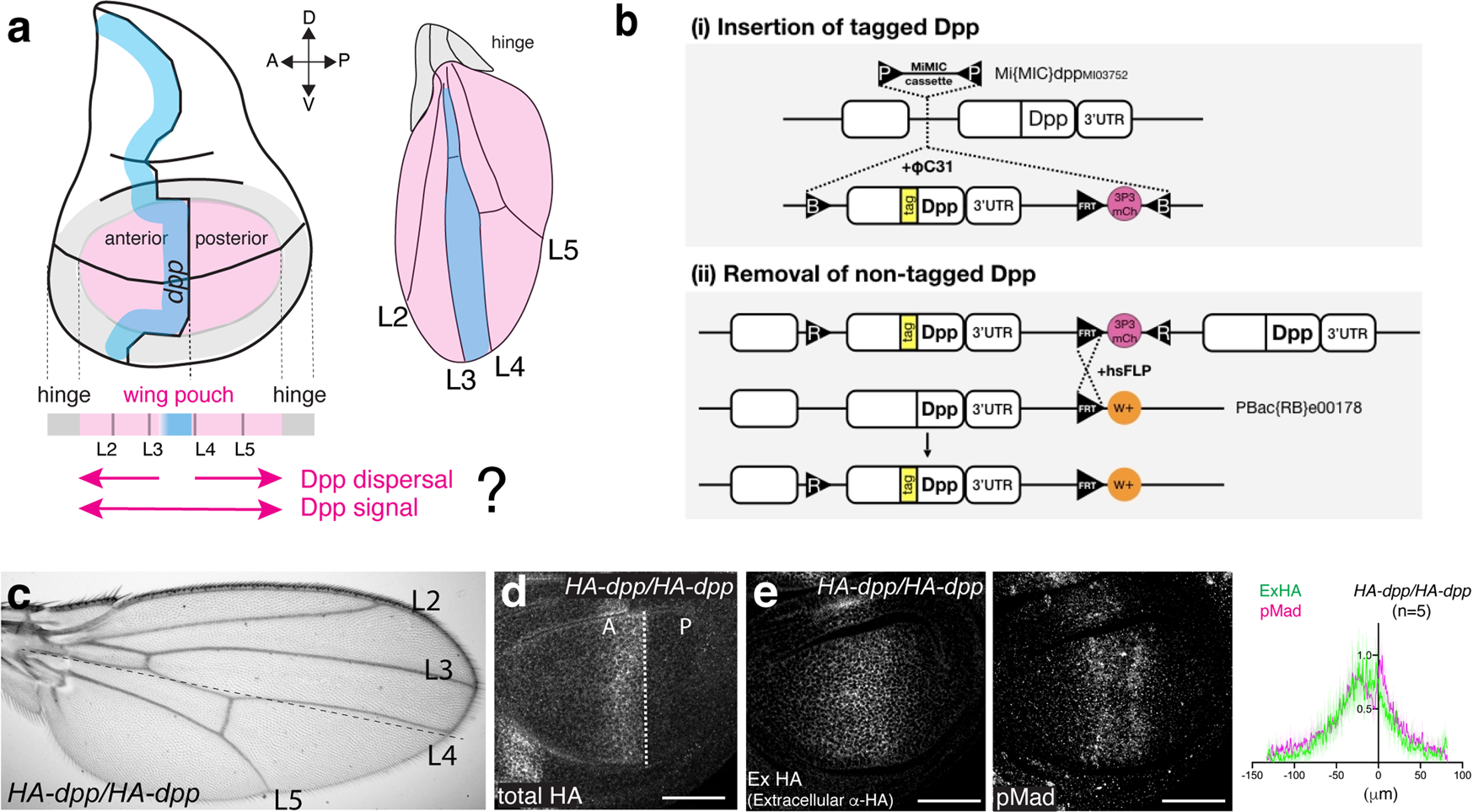

Fig. 1: Generation of a functional HA-dpp allele.
From: Asymmetric requirement of Dpp/BMP morphogen dispersal in the Drosophila wing disc
a A schematic view of the wing disc and the adult wing. b A schematic view of a platform manipulating endogenous dpp locus. c Adult wing of a homozygous HA-dpp fly. d Conventional α-HA staining of HA-dpp homozygous wing disc. e Extracellular α-HA staining (Ex HA) and α-pMad staining of HA-dpp homozygous wing disc. Average fluorescence intensity profile of extracellular HA and pMad staining of HA-dpp/HA-dpp wing disc (n = 5). Data are presented as mean ± SD. Scale bar 50 μm.
