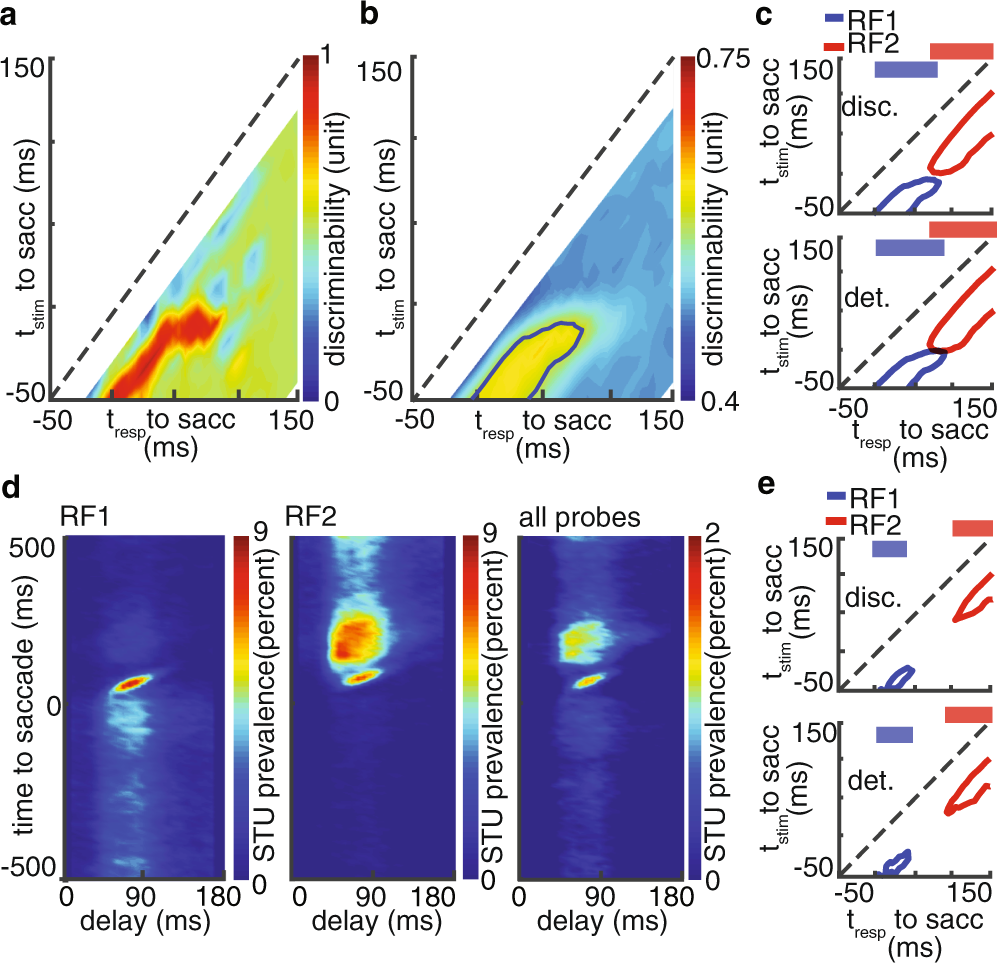

Fig. 2: Quantifying the spatial integration and assessing the contributing perisaccadic modulatory components.
From: A sensory memory to preserve visual representations across eye movements
a Location discriminability measured via model decoding for a sample MT neuron around its RF1. b Location discriminability around RF1 for the population of 623 neurons. The contour shows where the discriminability exceeds a threshold. c Temporal profiles of discriminability (top) and detectability (bottom) for RF1 and RF2; continuous sensitivity is reflected in the overlap in the projections on top. Contours indicate the times at which discriminability/detectability were above a certain threshold. d Temporal characteristics of modulated STUs. e Temporal profiles of discriminability (top) and detectability (bottom) for RF1 and RF2 after removing modulated STUs.
