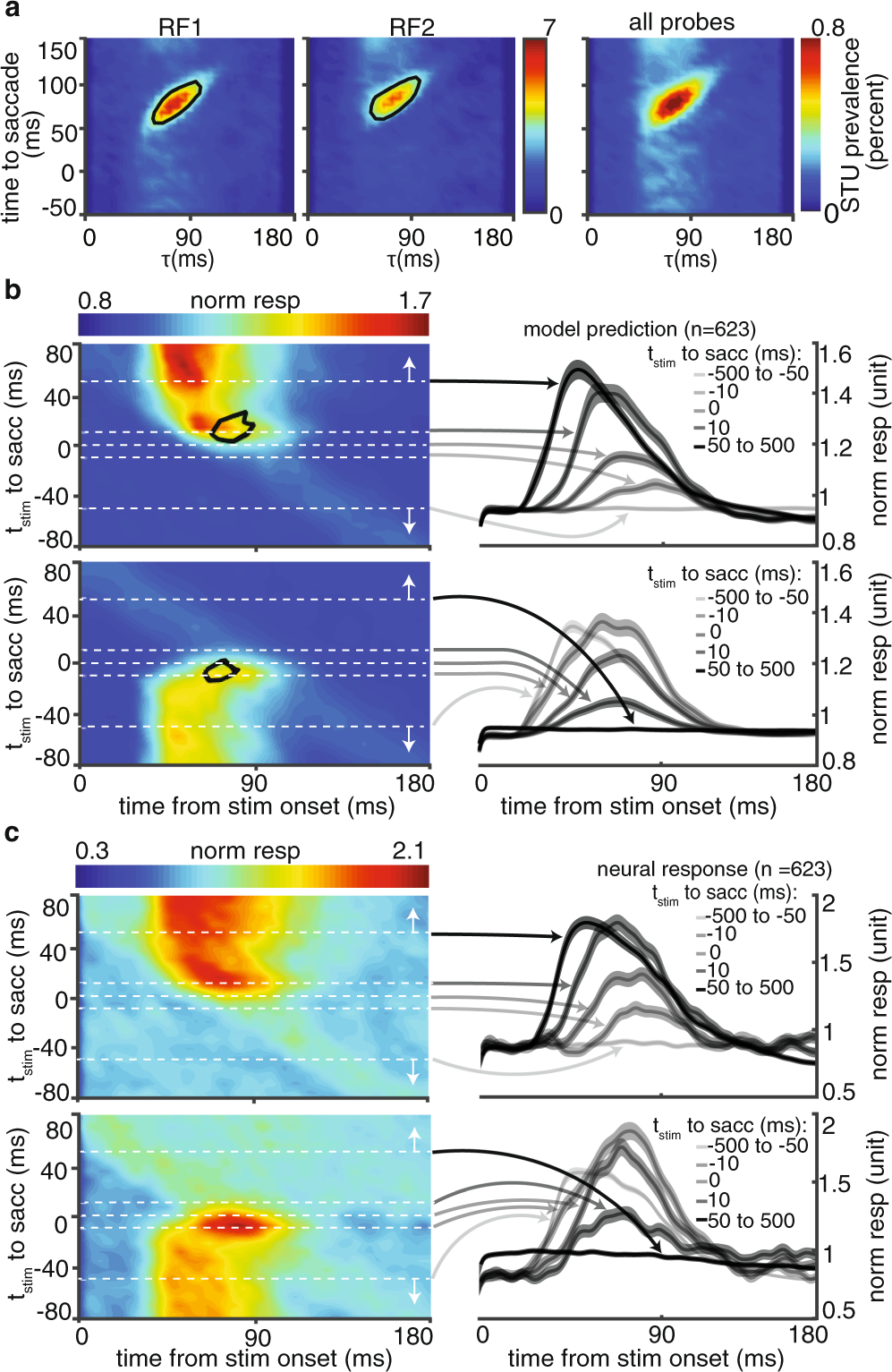

Fig. 3: Identifying the neural basis for an integrated representation of visual space.
From: A sensory memory to preserve visual representations across eye movements
a Temporal characteristics of integration-relevant STUs. Contours represent the times where the prevalence of integration-relevant STUs over the population of 623 neurons is greater than 50% of the maximum prevalence value. b Model-predicted response of the population across time to saccade and delay. The black contours in (a, b) indicate the response components driven by integration-relevant STUs (the same contours aligned to different times). Line traces on the right show the average population model-predicted firing rate (mean±SEM), at five sample times relative to the saccade (dashed white lines on the left). c Plots are as in (b), but with actual neuronal responses. Line traces on the right represent the population peristimulus time histogram (PSTH) at sample time points.
