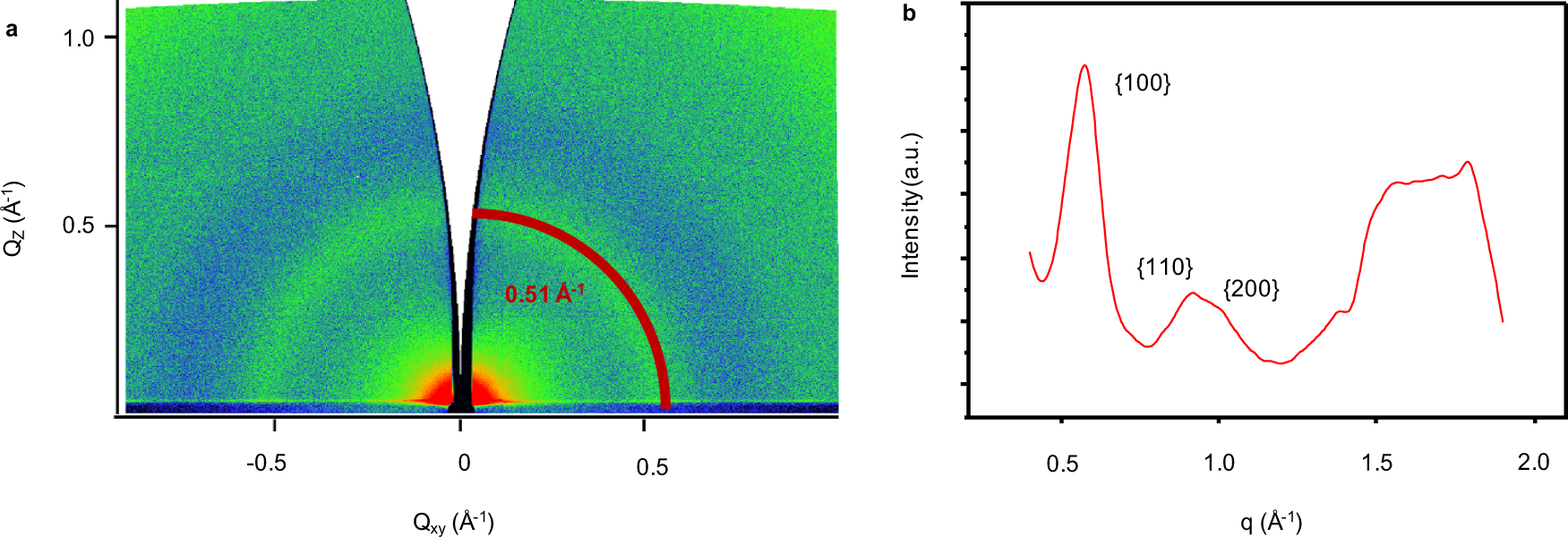

Fig. 3: GIWAXS analysis of the CTF film.
a GIWAXS image of CTF film on 300 nm SiO2/Si (q-range from 0 to ~1.0 Å−1). b In-plane projection of GIWAXS data from Supplementary Fig. 9 (q ranging from 0 to ~2.0 Å−1).
