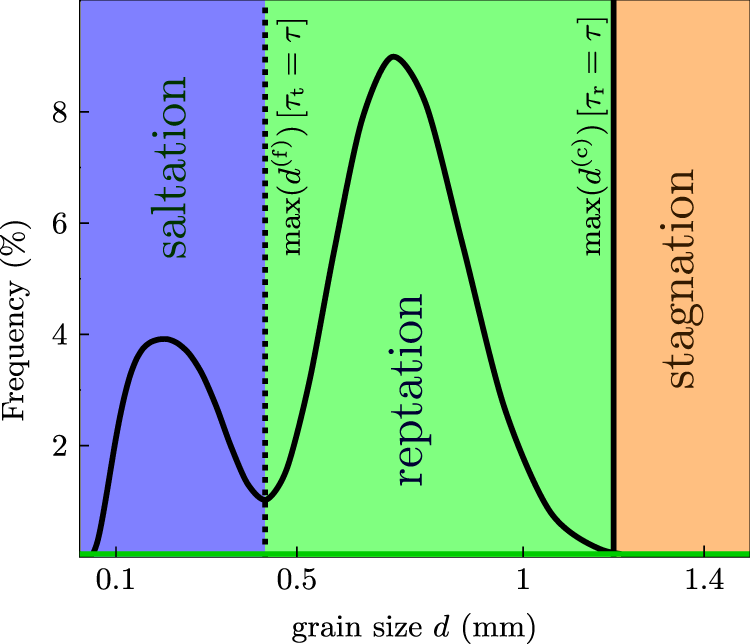

Fig. 3: Bimodal surface GSD and projected transport modes.

The projection of the phase diagram for bidisperse grain transport from Fig. 2 is intimately linked to the (continuously) bimodal surface GSD found on megaripples (see Fig. S1 for another visual representation of the connection). While the left peak comprises the saltating fine grains and maps to the saltation regime (blue), the right peak comprises the reptating coarse grains and maps to the reptation regime (green). The transition between them corresponds to the minimum of the GSD, where one finds the coarsest saltating fine grains, whose saltation threshold \({\tau }_{{{{{{{{\rm{t}}}}}}}}}(\max ({d}^{({{{{{{{\rm{f}}}}}}}})}))=\tau\) is equal to the prevailing wind stress and constantly adjusts, accordingly (dotted line). Likewise, the transition to stagnation (solid line) defines the coarsest grain size at the right margin of the coarse-grain peak via its reptation threshold \({\tau }_{{{{{{{{\rm{r}}}}}}}}}\left(\max ({d}^{({{{{{{{\rm{c}}}}}}}})})=\tau \right.\). The displayed representative surface GSD was obtained from a megaripple crest located in Nahal Kasuy, Israel (see Fig. 1 in ref. ¹⁶).
