Fig. 2: FiCAT precision characterization.

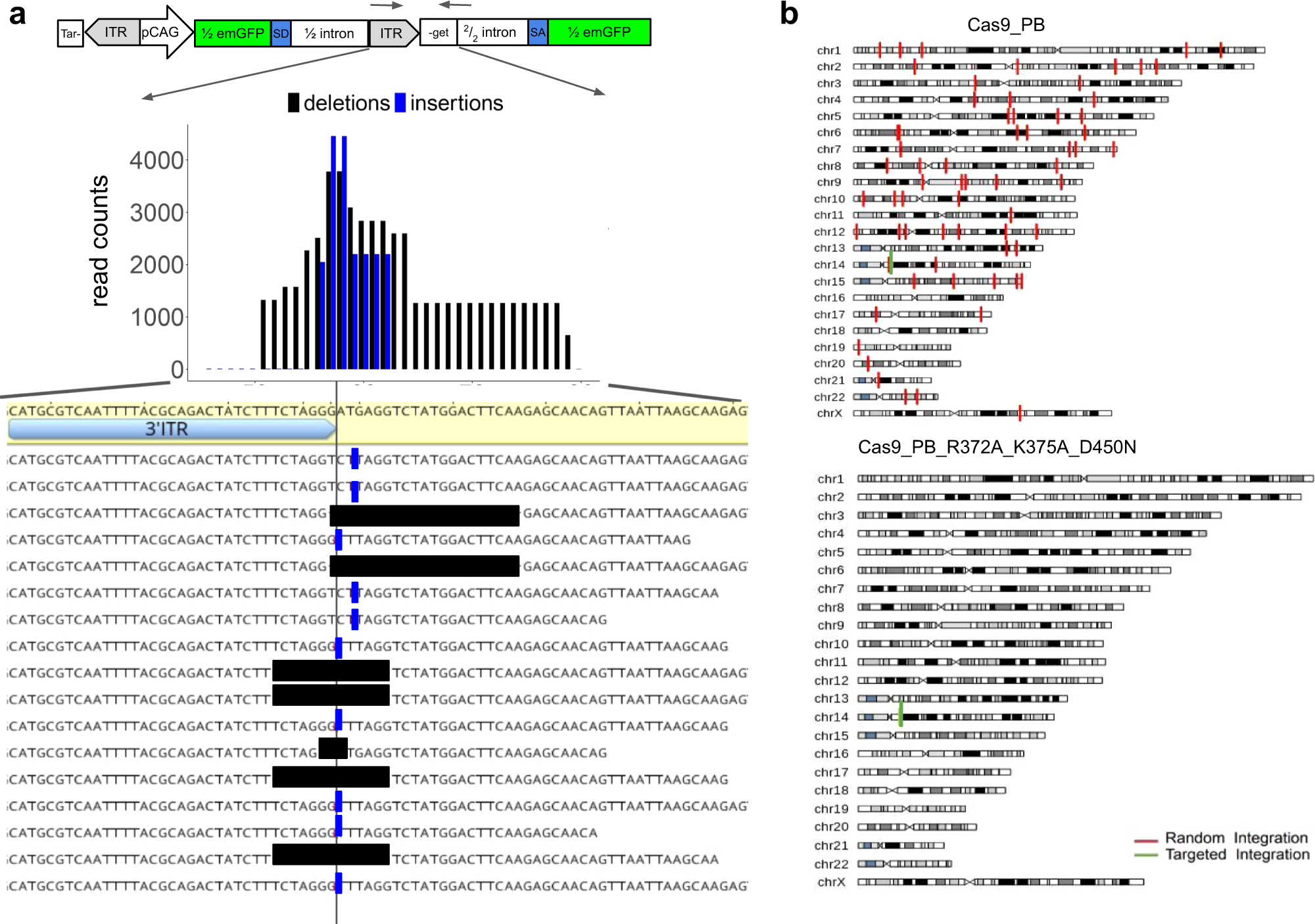

From: Find and cut-and-transfer (FiCAT) mammalian genome engineering
