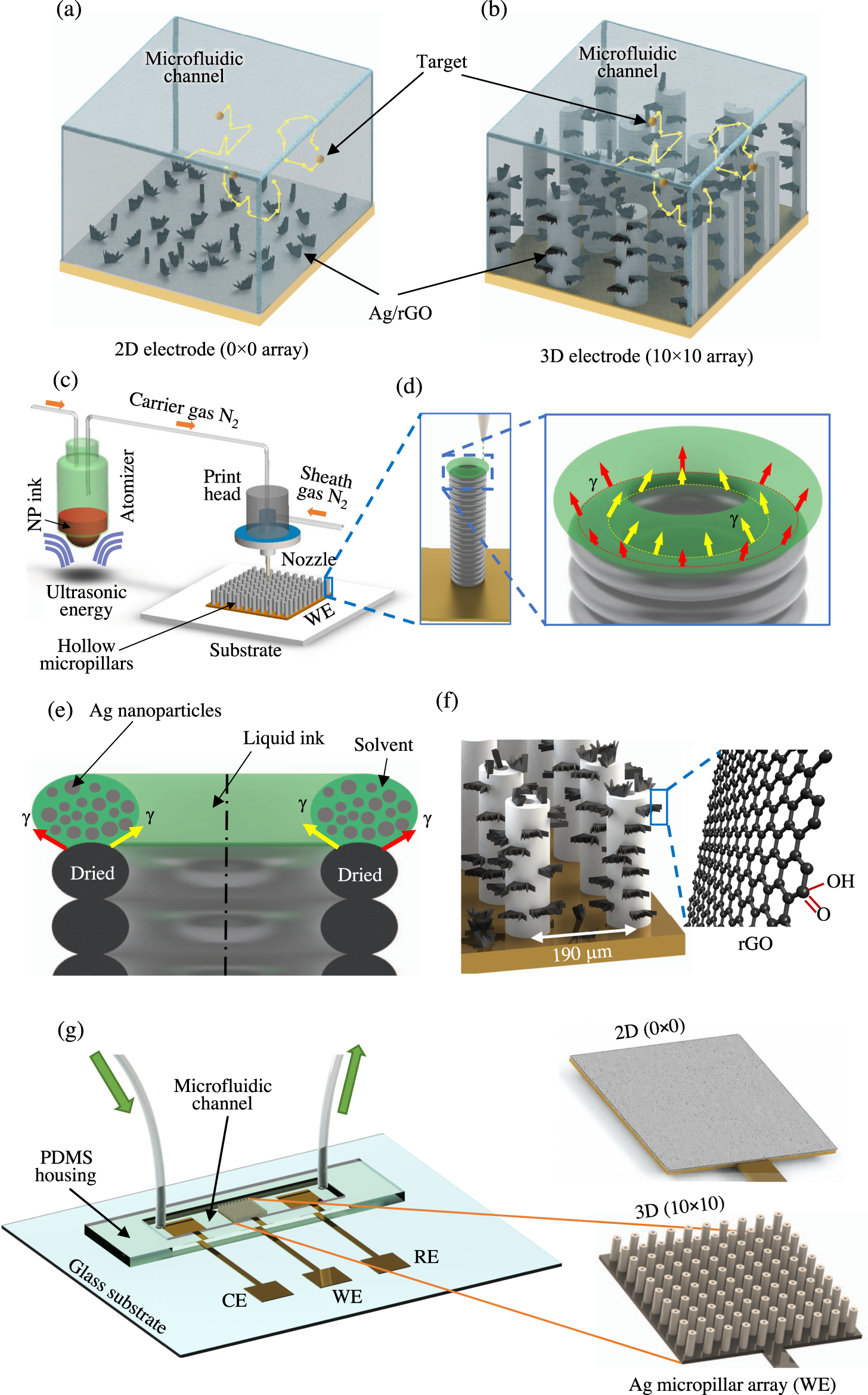

Fig. 1: Aerosol Jet nanoparticle 3D printing process for micropillar array electrodes used for dopamine sensing.
