Fig. 7: Results of principal components analyses (PCA) of data from microcomputed tomography (microCT) imaging of Hhip−/− heads at E18.5. | Nature Communications

Fig. 7: Results of principal components analyses (PCA) of data from microcomputed tomography (microCT) imaging of Hhip−/− heads at E18.5.

From: Single-cell analysis identifies a key role for Hhip in murine coronal suture development

Fig. 7: Results of principal components analyses (PCA) of data from microcomputed tomography (microCT) imaging of Hhip−/− heads at E18.5.

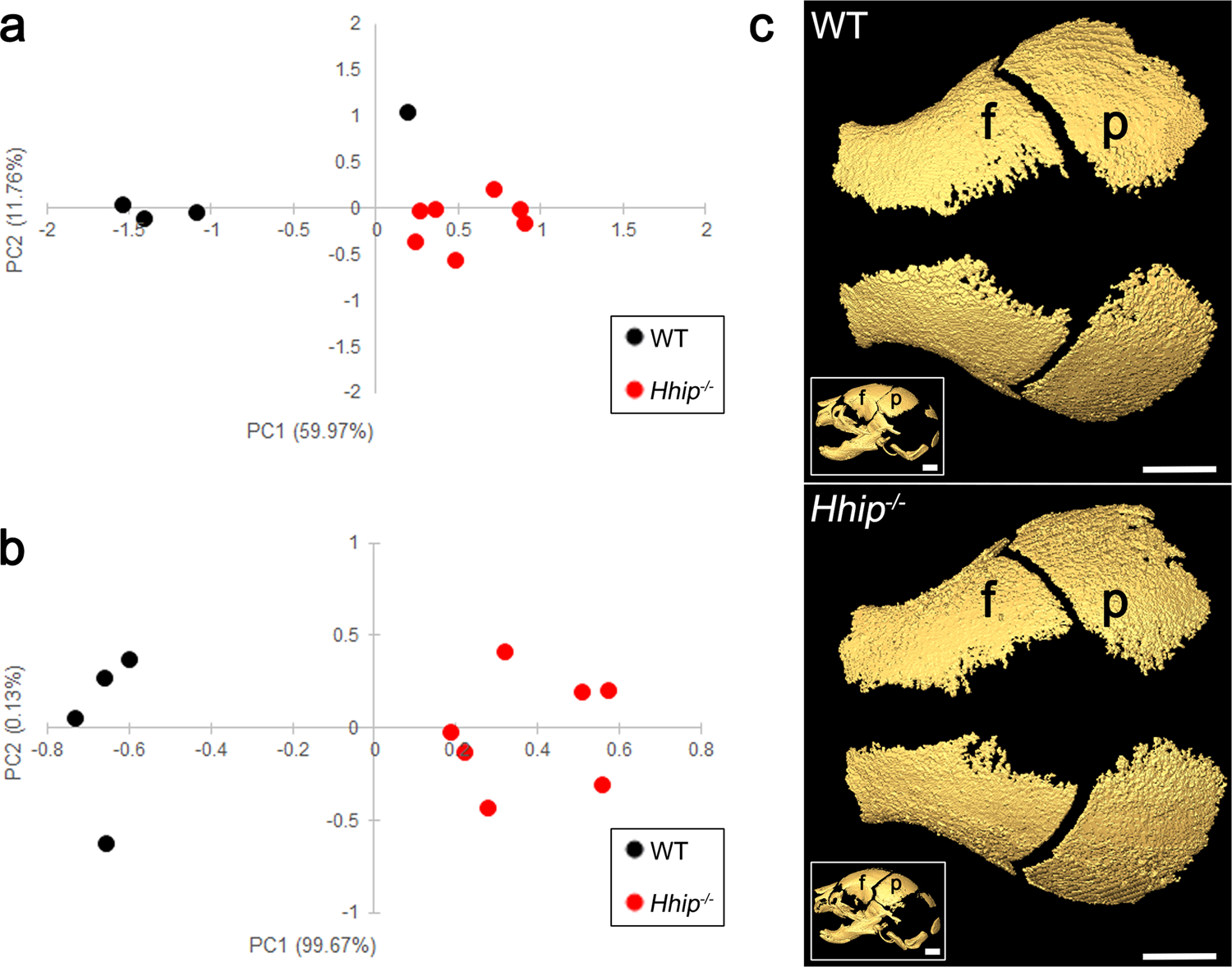

Scatter plots of results of PC1 and PC2 scores based on PCA analysis of unique linear distances among 3D landmarks for a form and b shape (adjusting for the effects of allometry) of WT (n = 4) and Hhip−/− (n = 7) skulls. c 3D reconstruction of microCT images showing dorsal views of the frontal (f) and parietal (p) bones of WT and Hhip−/− calvaria. Insets show lateral views of the whole skull. Images are representative n = 4 WT and seven Hhip−/− skulls. Scale bars, 1 mm.
