Fig. 4: Solvation structures of the liquid electrolyte solution under different gravity conditions.
From: Effect of the supergravity on the formation and cycle life of non-aqueous lithium metal batteries

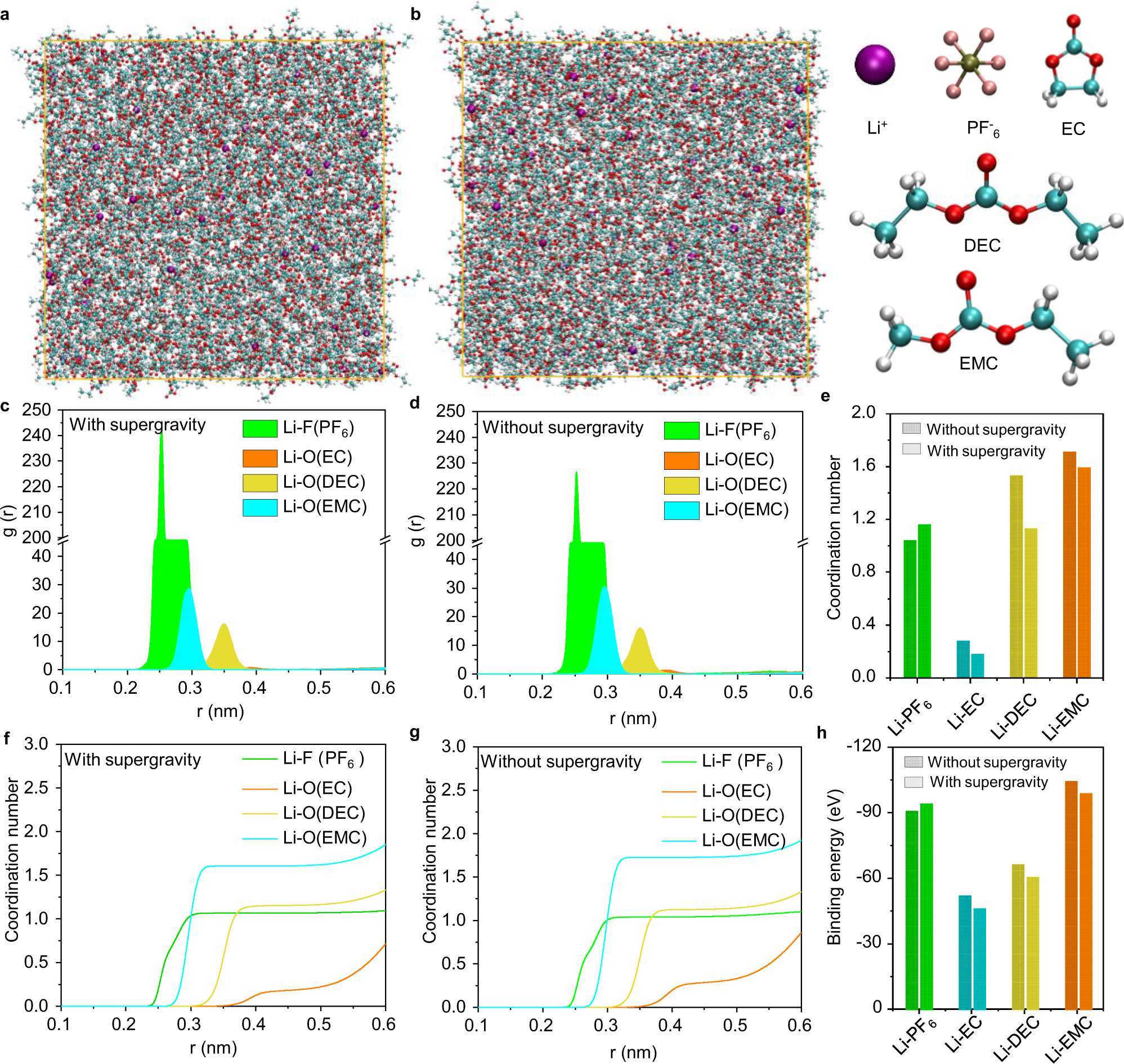

The snapshot of the MD simulated box a with and b without supergravity. Representative configuration of solvation structures of Li+ from MD simulations. RDFs and coordination numbers of Li+–PF6− and solvent c, f with and d, g without supergravity. e Comparison of coordination number between Li+–PF6− and solvent. h The binding energy between Li+ and various species calculated by the DFT. Color code: Li+ purple, P brown, F rose red, C cyan, O red, H white.
