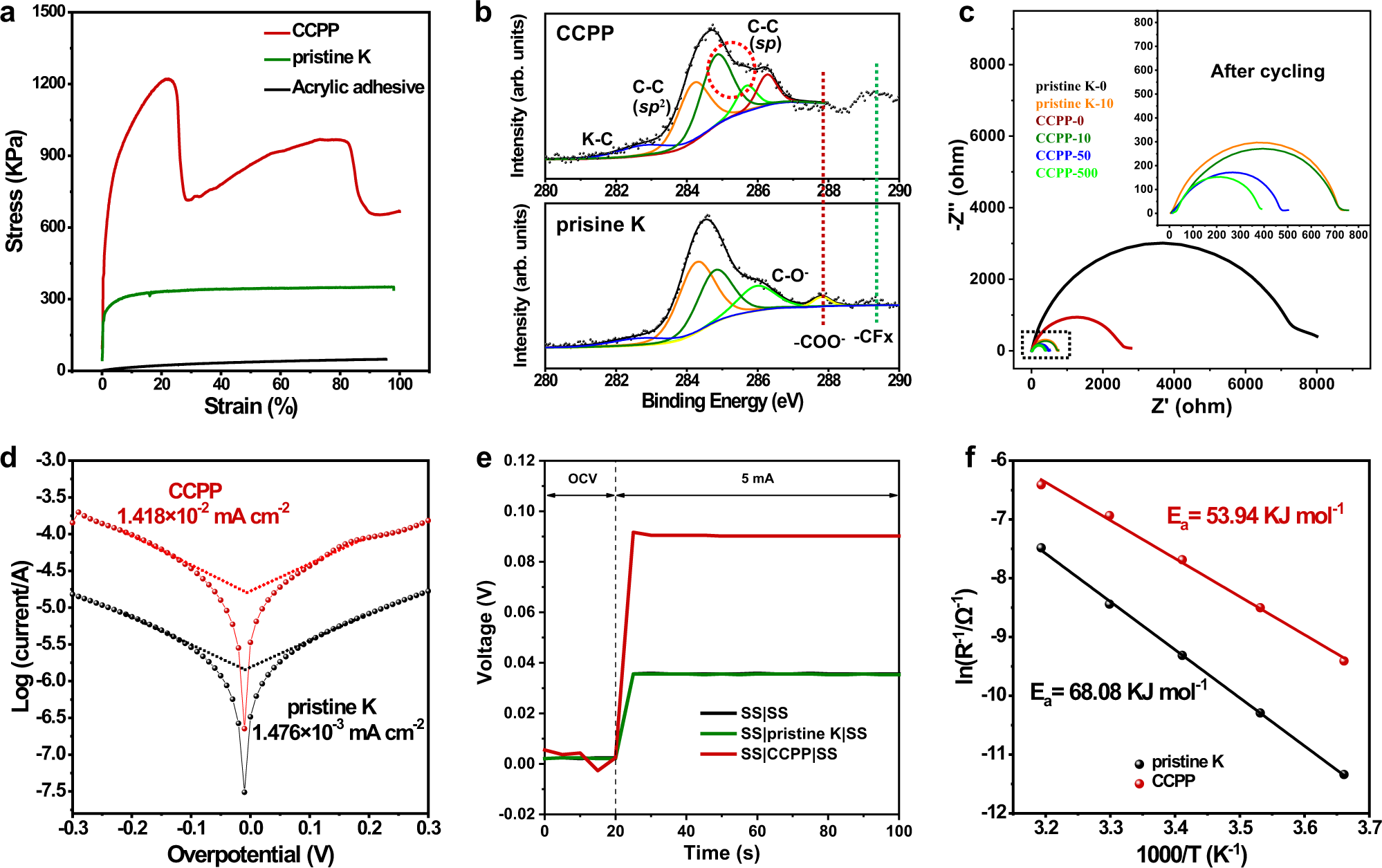

Fig. 3: Mechanical, interfacial and ion-transport properties of CCPP.
From: Tribo-electrochemistry induced artificial solid electrolyte interface by self-catalysis
a Stress–strain curves of CCPP, pristine K, and acrylic adhesive. b C 1s XPS spectra of CCPP and pristine K after 20-h cycling. c Nyquist plots taken at various cycle numbers. d Tafel plots and derived exchange current density obtained from linear sweep voltammetry tests in the range of −0.3 V to 0.3 V at 2 mV s−1. e D.c. conductivity Measurements of pristine K and CCPP using blocking electrodes. f Corresponding Arrhenius curves and comparison of activation energies of CCPP and pristine K. Source data are provided as a Source Data file.
