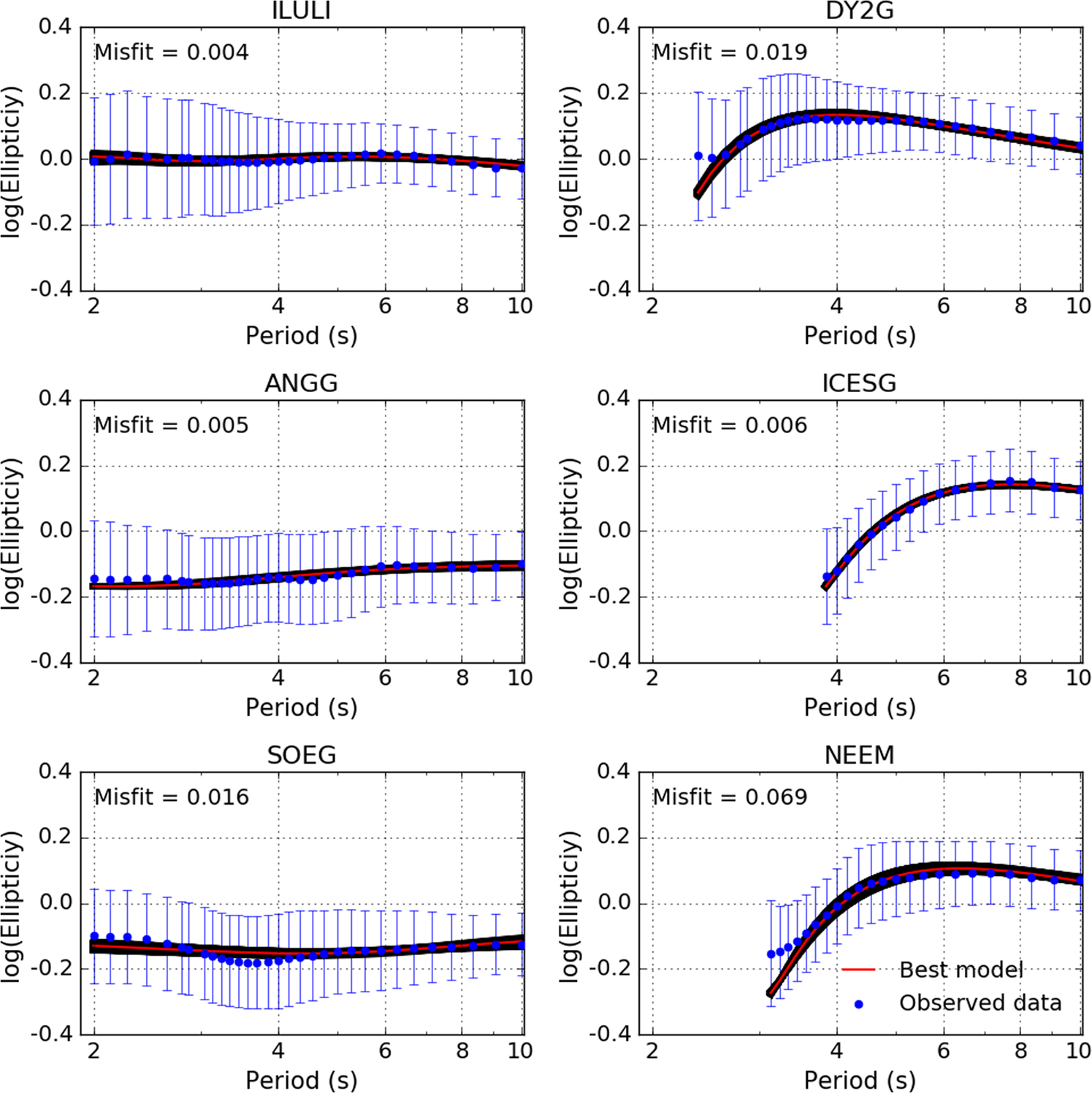

Fig. 5: Comparison of ellipticity measurements and fundamental mode predictions from the best-fitting Vs models for illustrative off- (left column) and on-ice (right column) stations.
From: Uppermost crustal structure regulates the flow of the Greenland Ice Sheet
The measured ellipticity (blue dots), standard deviation (error bars), predictions for the models within the uncertainty range (black lines) and the minimum misfit model (red line) are all shown.
