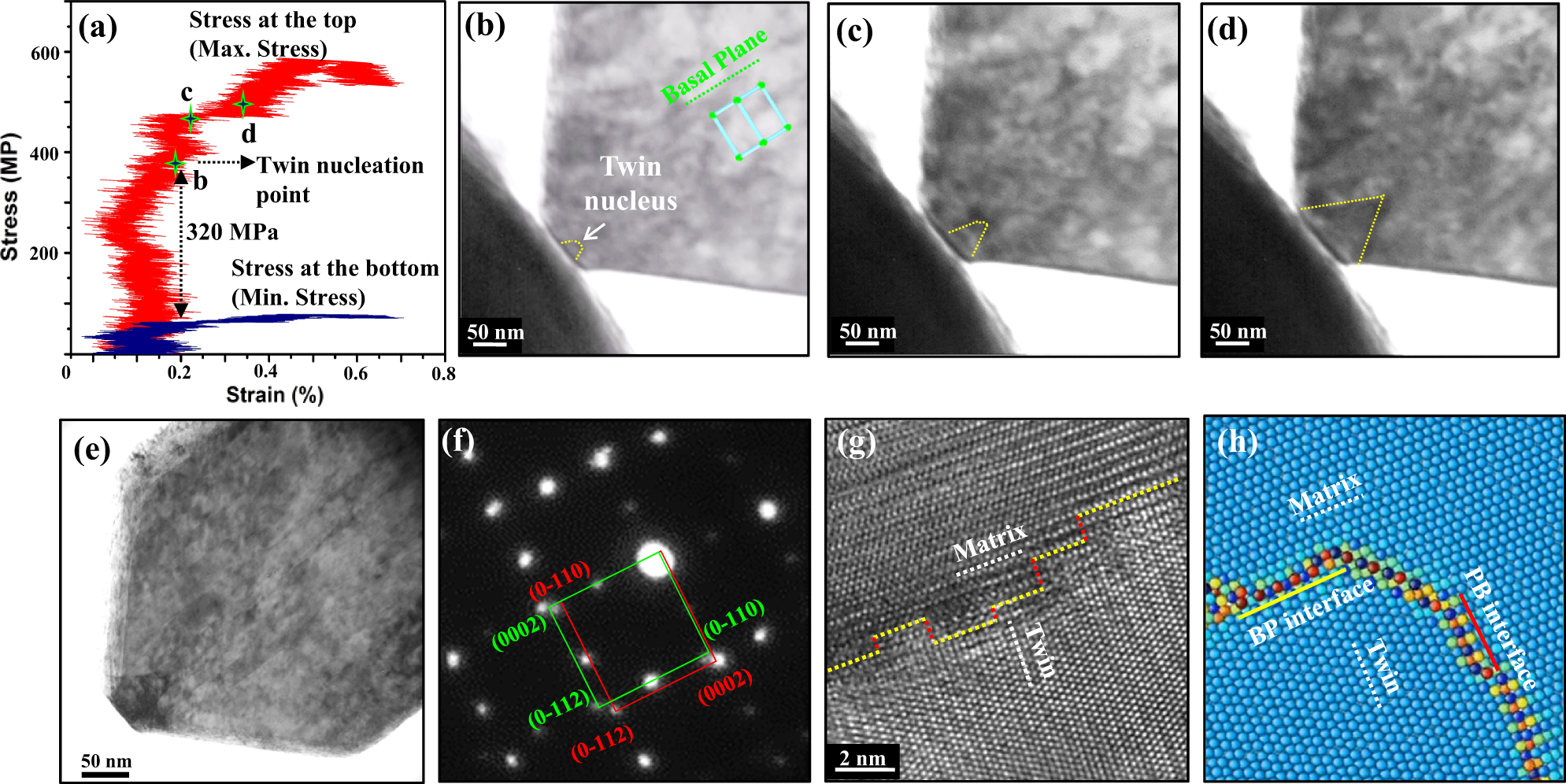

Fig. 3: Twinning events in the truncated wedge-shaped Mg pillar with the 100 nm top in which there is a high stress difference.

a Corresponding compression curves of the pillar. The max. stress curve was calculated by the ratios of compression loading to the cross section of the pillar top. The min. stress curve was calculated by the ratios of compression loading to the cross section of the pillar bottom. The value of 320 MPa shows the stress gap at the twin nucleation point b. b–d Bright-field TEM snap-shots shows twin nucleation from the pillar top. The dashed yellow lines in b–d indicate the locations of twin boundaries. e Bright-field TEM image shows the morphology of the twin nucleus. f A selected area diffraction pattern demonstrates the orientation relationship between twin and matrix. The diffraction pattern is associated with a semi-coherent twin embryo structure where the coherency stress has been relaxed during sample thinning for HRTEM observation. g HRTEM images of twin boundaries shows the basal/prismatic terraced boundary. The yellow dashed lines indicate the basal-prismatic (BP) interfaces, and the red lines indicate the prismatic-basal (PB) interfaces. h Simulated atomic twin boundary structure with BP or PB interfaces. Atoms are color coded according to their excess energy, with the lowest energy atoms appearing blue, while the highest energy atoms appear red. The white dashed lines in g, h indicate the basal planes.
