Fig. 3: Evolution of the along-current winter mean turbulent heat flux and ice concentration.

From: Sea-ice retreat suggests re-organization of water mass transformation in the Nordic and Barents Seas

Fig. 3

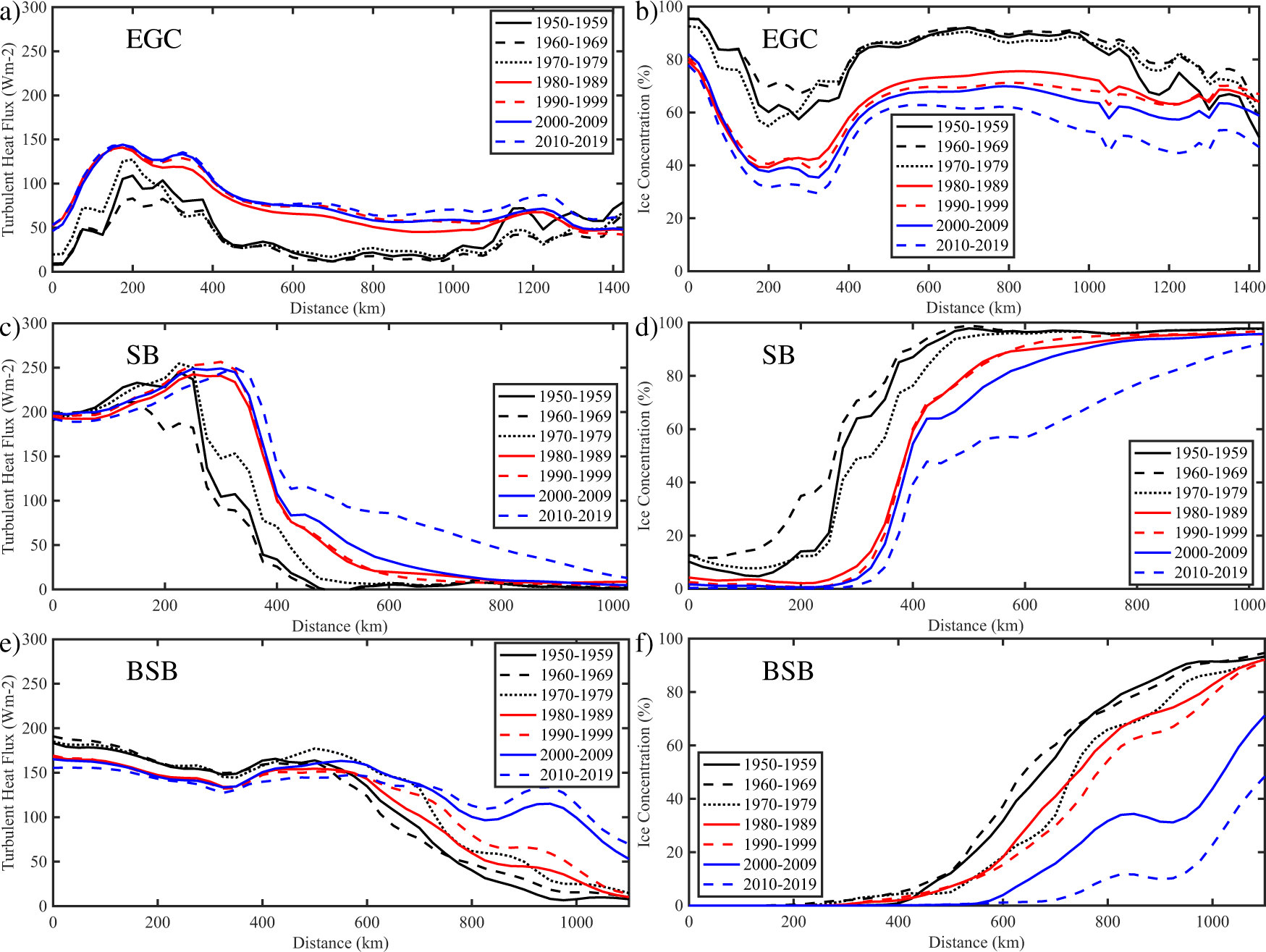

Decadal means, a, c, and e for the turbulent heat flux  and b, d and f for the ice concentration, are shown for the period 1950−2020. Results are shown for the East Greenland Current (EGC), the Svalbard Branch (SB), and the Barents Sea Branch (BSB). All fields are from the ERA5 Reanalysis.
