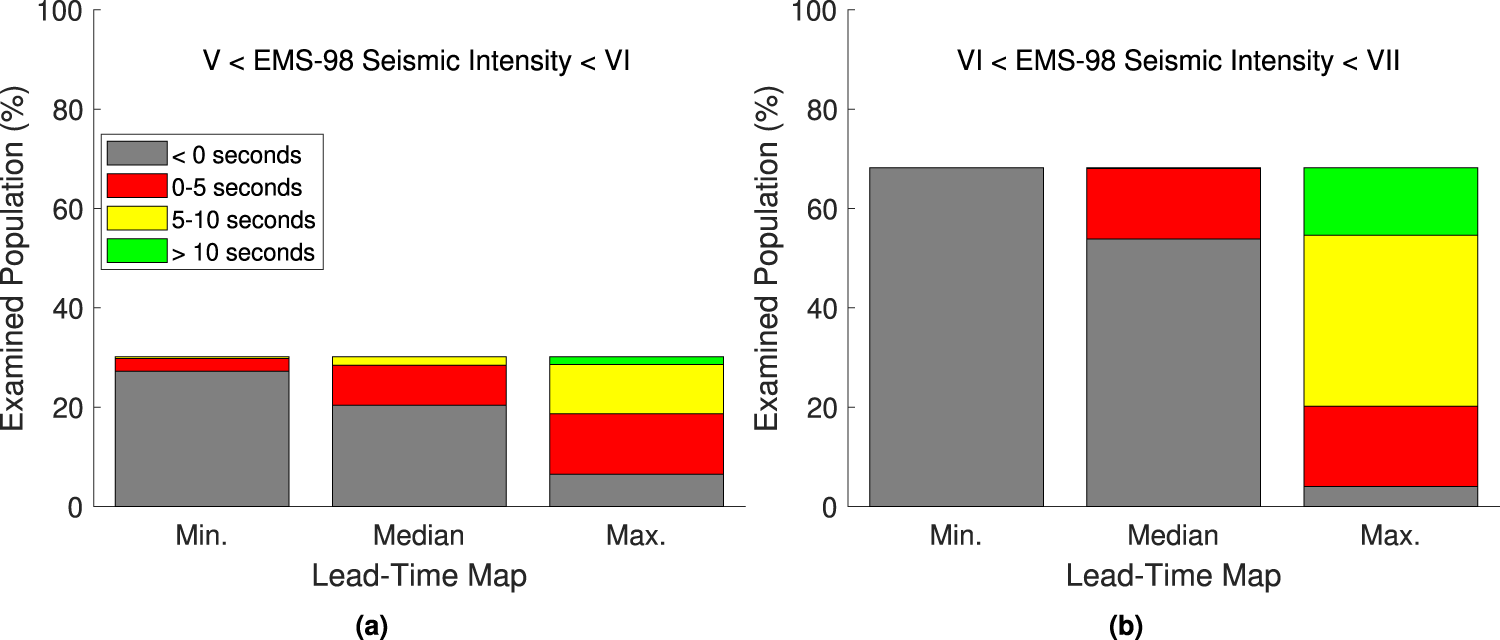

Fig. 7: Examining the potential effectiveness of calculated lead times for EEW.
From: Investigating the potential effectiveness of earthquake early warning across Europe
Average EMS-98 macroseismic intensities experienced by the affected ambient population during events with a recurrence interval of 500 years that resulted in at least 0.05 g PGA at the associated target site, categorised by the corresponding times of the maps presented in Fig. 4. Note that seismic intensities V, VI, and VII denote “strong'', “slightly damaging'', and “damaging” events, respectively.
