Fig. 2: Morphology and structural characterization of Pd@IM-S-1.

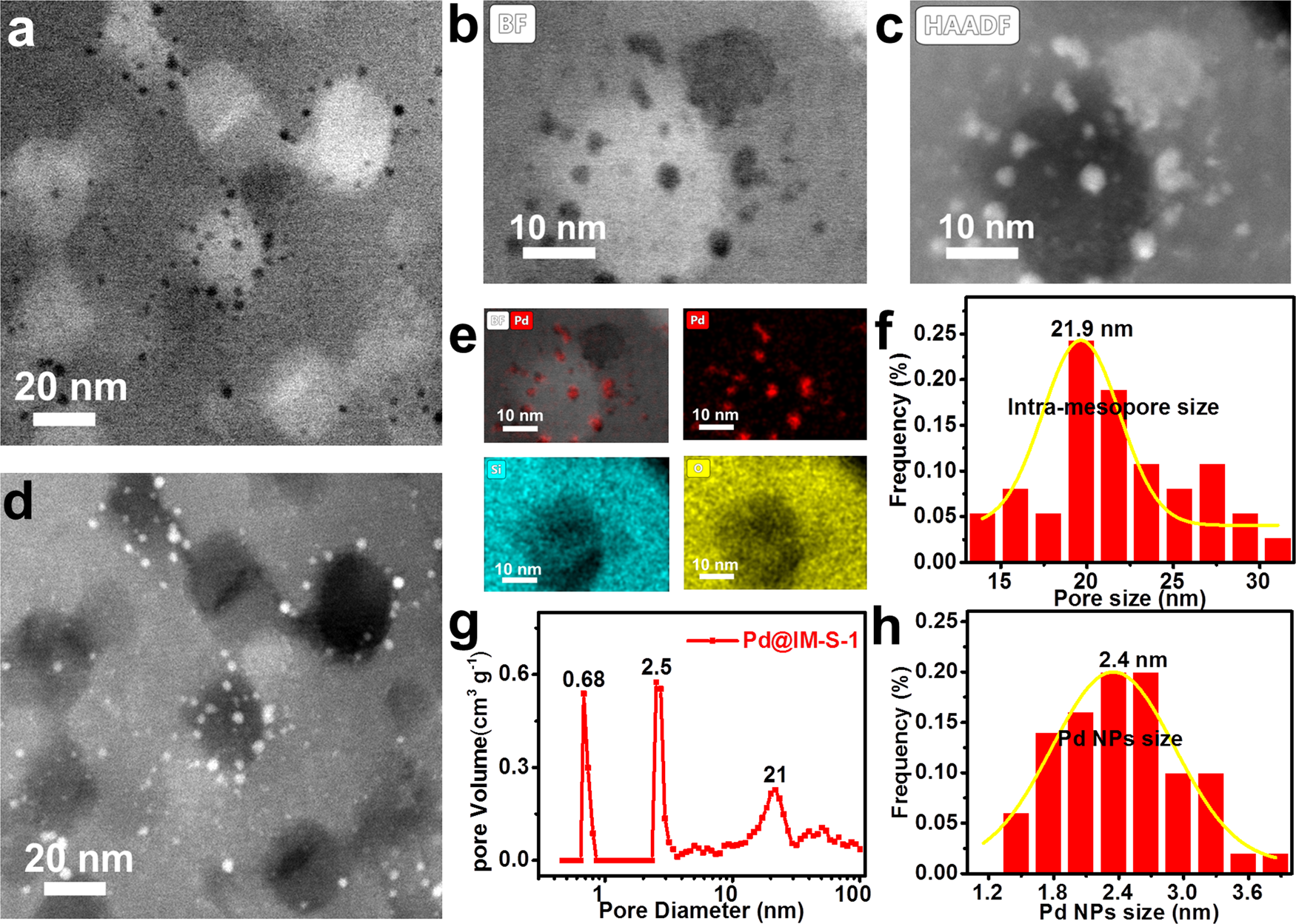

a, b FIB-AC-BF-TEM, c, d FIB-AC-HAADF-TEM, e FIB-AC-EDS-mapping, f intra-mesopore size distribution, g pore size distribution curve, h Pd NPs size distribution.
