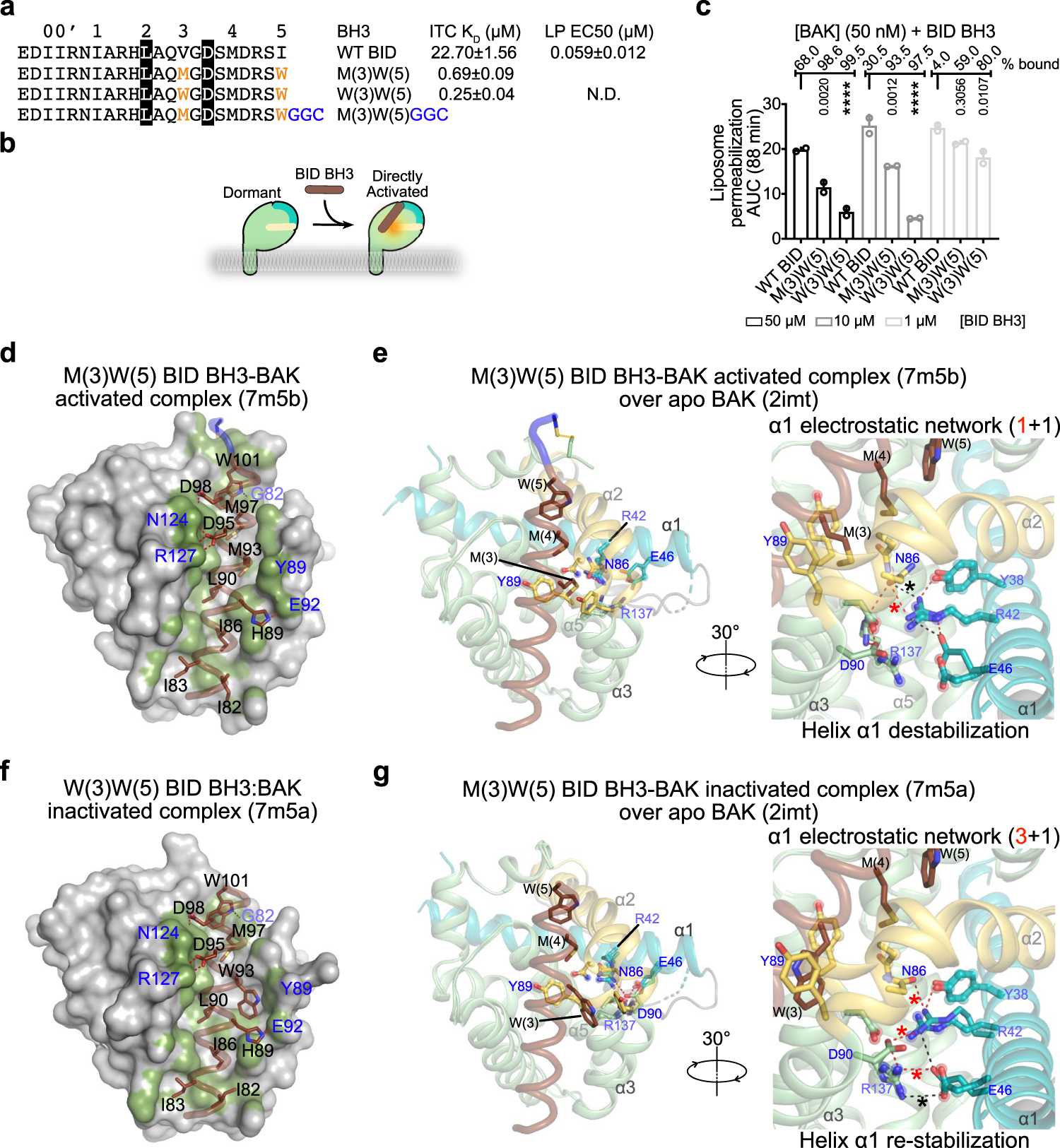

Fig. 5: BH3 ligand binding to the activation groove regulates helix α1 stability to activate or inactivate BAK.
