Fig. 4: Experimental demonstration of the independent propagation of two polarization-division multiplexed broadband THz pulses within the four-wire waveguide (FWWG). | Nature Communications

Fig. 4: Experimental demonstration of the independent propagation of two polarization-division multiplexed broadband THz pulses within the four-wire waveguide (FWWG).

From: Versatile metal-wire waveguides for broadband terahertz signal processing and multiplexing

Fig. 4: Experimental demonstration of the independent propagation of two polarization-division multiplexed broadband THz pulses within the four-wire waveguide (FWWG).

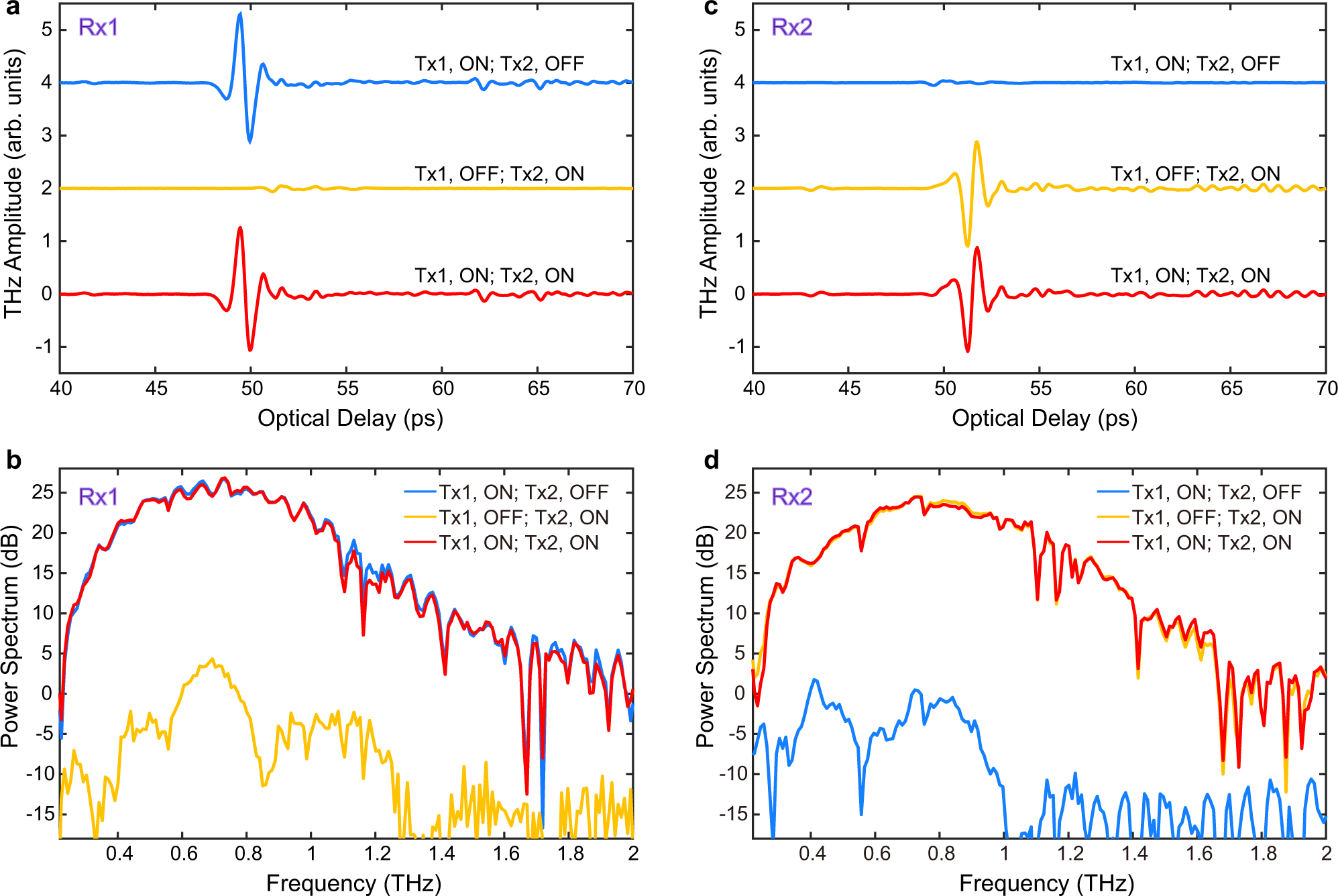

Time-domain signals (a) and corresponding spectra (b) reconstructed via Rx1 under different ON/OFF configurations of Tx1 and Tx2. Time-domain signals (c) and corresponding spectra (d) reconstructed via Rx2 under different ON/OFF configurations of Tx1 and Tx2. The THz time-domain waveforms in (a) and (c) are vertically shifted for clarity.
