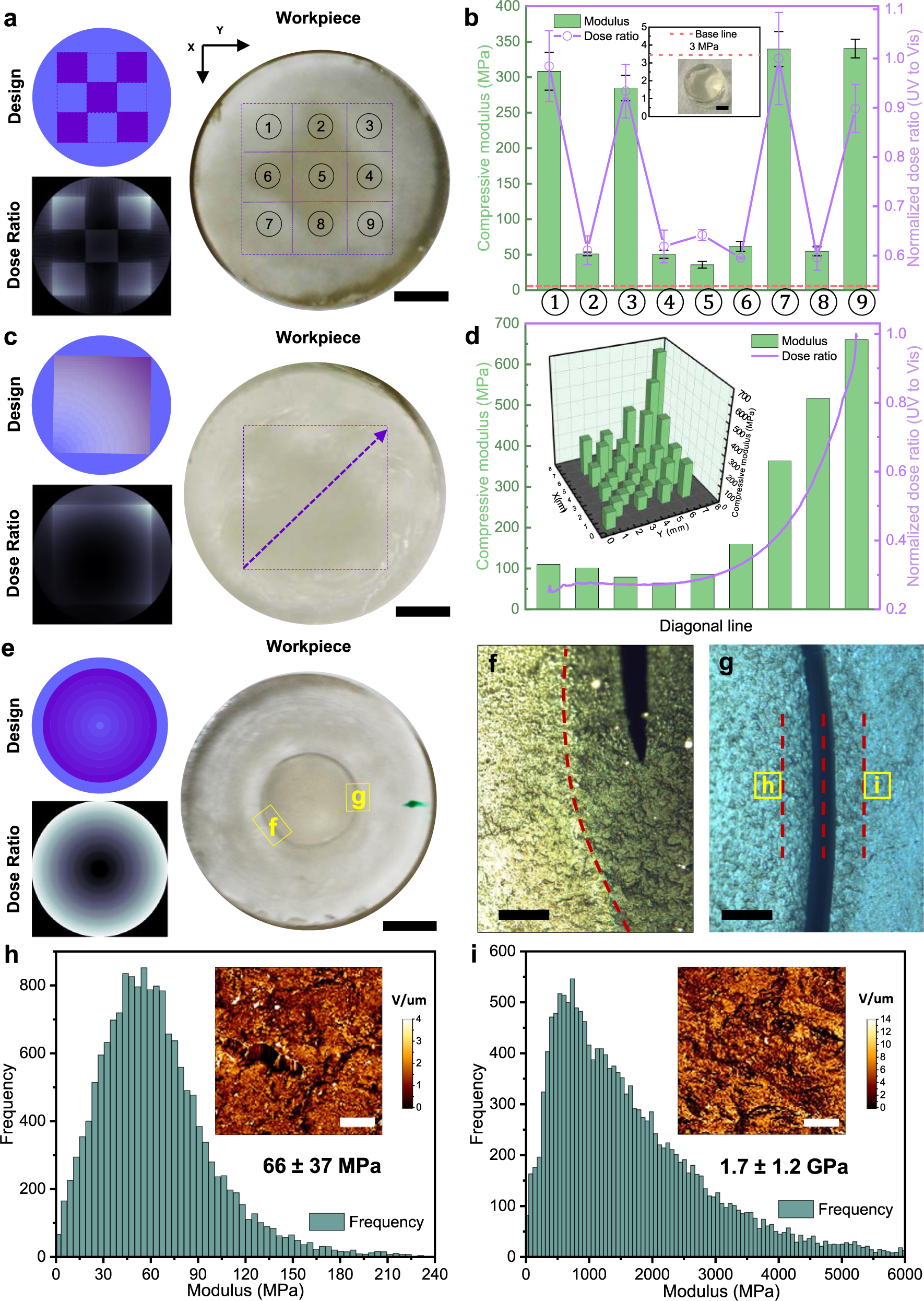

Fig. 1: Coordination of two light sources in tomographic volumetric 3D printing grants a high degree of freedom to customize the spatial variation of mechanical properties inside a workpiece.
