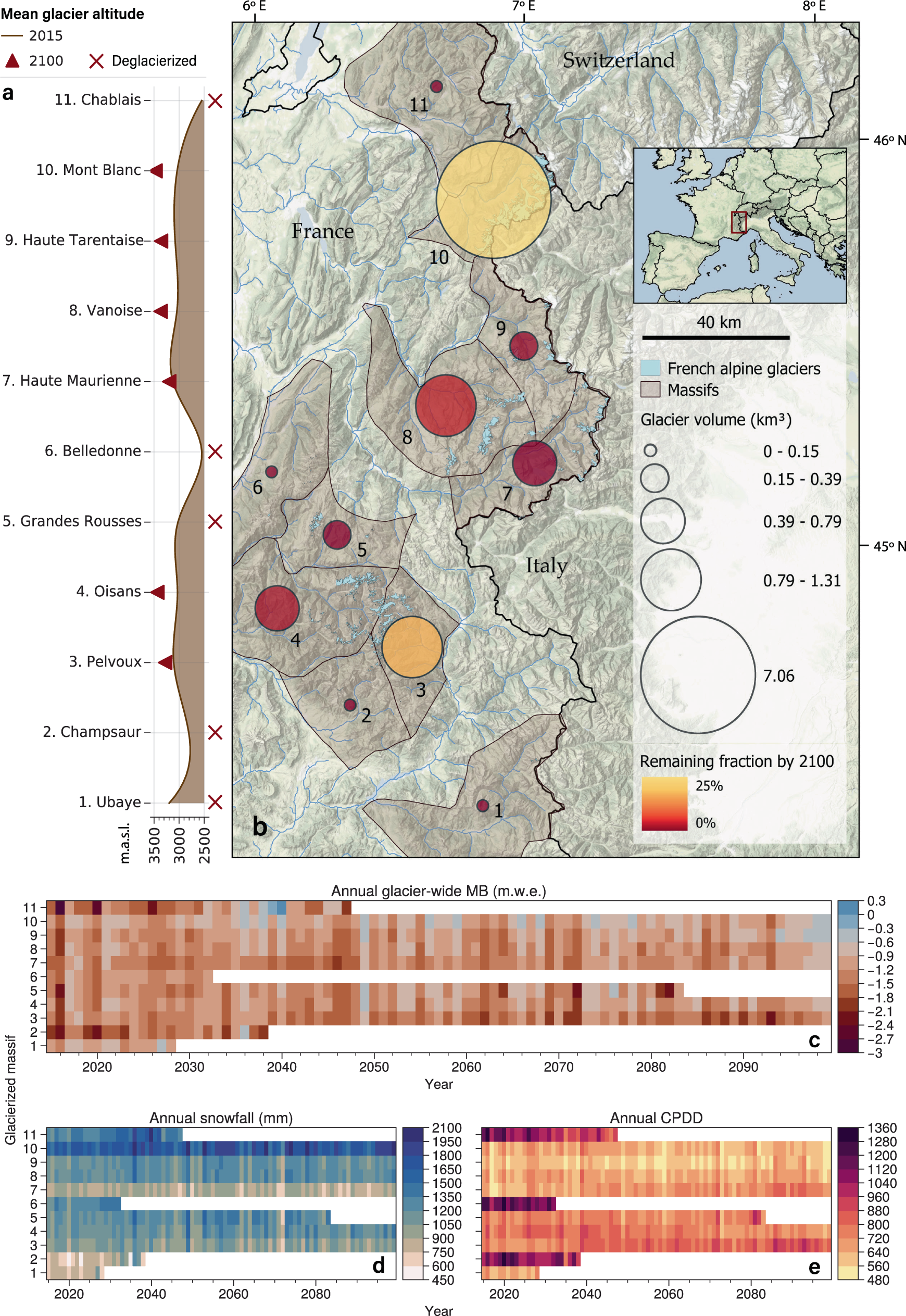

Fig. 2: Projected glacier and climate evolution per glacierized massif between 2015 and 2100 under RCP 4.5.
From: Nonlinear sensitivity of glacier mass balance to future climate change unveiled by deep learning
a Projected mean glacier altitude evolution between 2015 and 2100. Massifs without glaciers by 2100 are marked with a cross, b Glacier ice volume distribution per massif, with its remaining fraction by 2100 (with respect to 2015), c Annual glacier-wide MB per massif, d Annual snowfall per massif, e Annual cumulative positive degree-days (CPDD) per massif. All values correspond to ensemble means under RCP 4.5. Years in white in c-e indicate the disappearance of all glaciers in a given massif.
