Fig. 5: Catalysis efficiency for the microreactors with different catalyst ratios.
From: Pickering emulsion droplet-based biomimetic microreactors for continuous flow cascade reactions

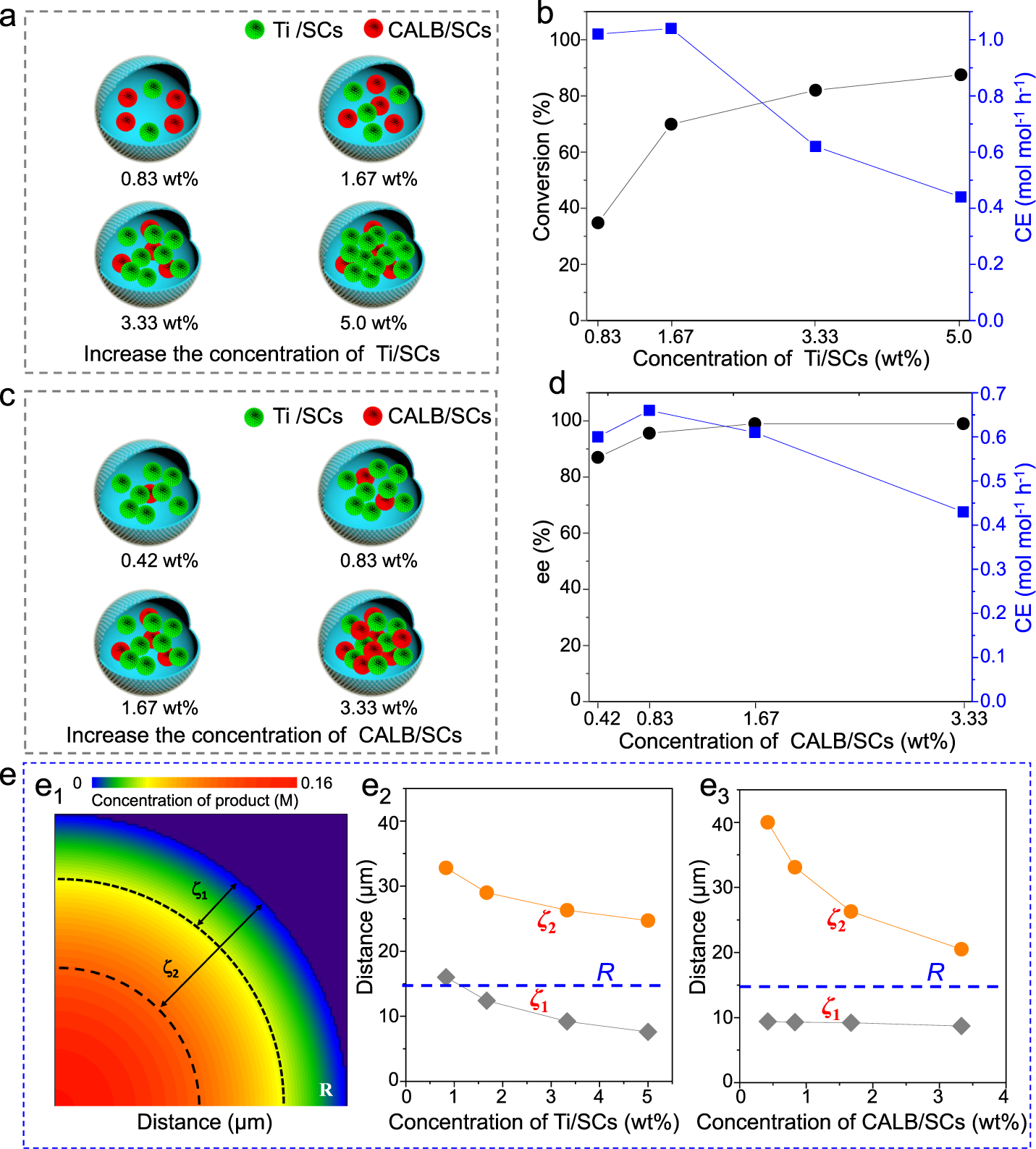

a Schematic illustration of biomimetic microreactors with different fractions of Ti/SCs. b Benzaldehyde conversion and CE as a function of the fraction of Ti/SCs. c Schematic illustration of the biomimetic microreactors with different fractions of CALB/SCs. d E.e. and CE a function of the fraction of CALB/SCs. e1 Schematic illustration of the relationship between ζ1, ζ2, and R. e2 ζ as a function of the Ti/SCs concentration. e3 ζ as a function of the CALB/SCs concentration. The reaction conditions are the same as those in Fig. 3c except for the ratio of catalysts.
