Fig. 2: Visualization of electronic state fingerprints for MoS2.
From: Representing individual electronic states for machine learning GW band structures of 2D materials

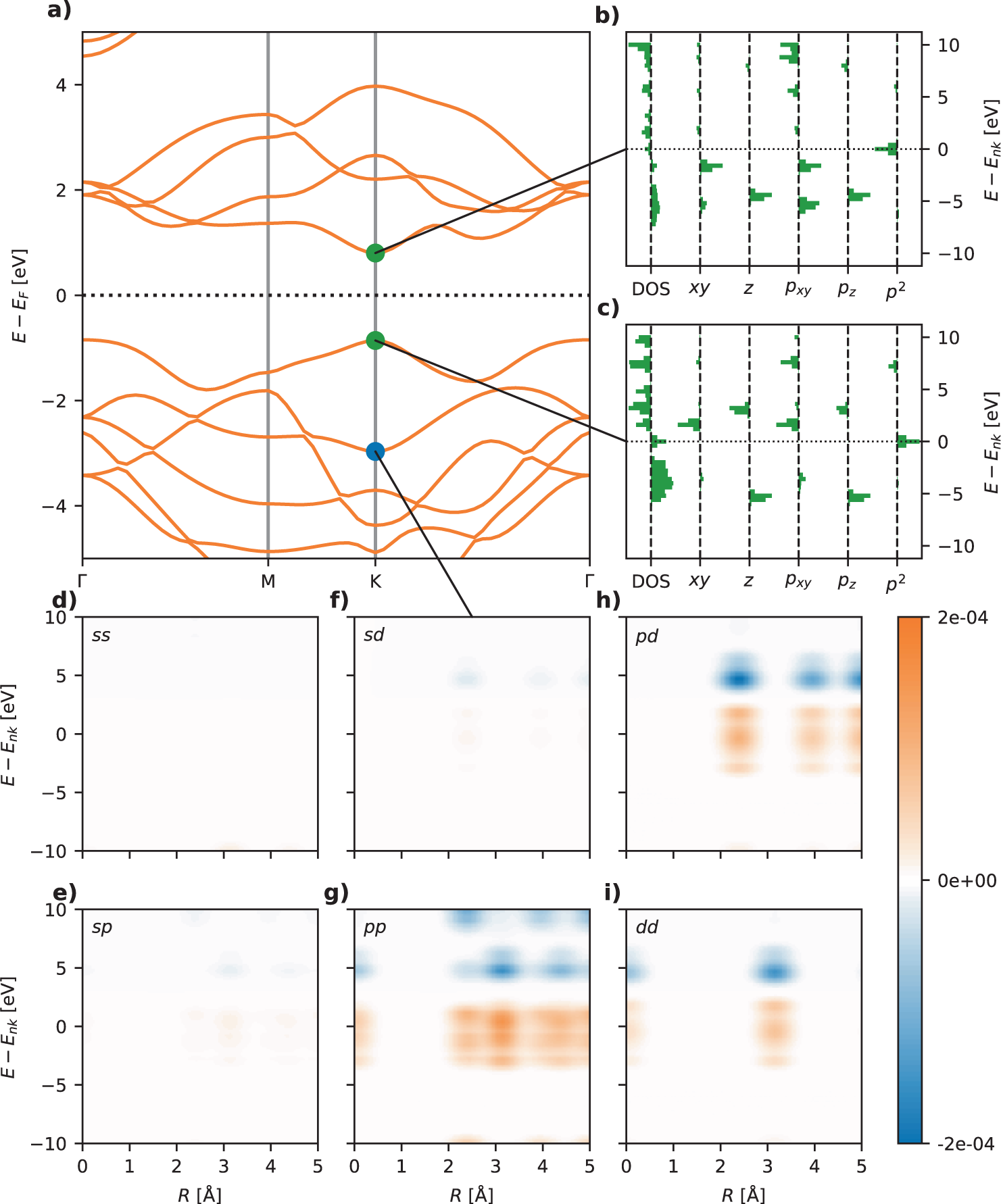

a Shows the PBE band structure. b, c Show ENDOME fingerprints of the conduction band minimum and valence band maximum states for the K-point. d–i Show six RAD-PDOS fingerprints for combinations of s, p, and d orbitals.
