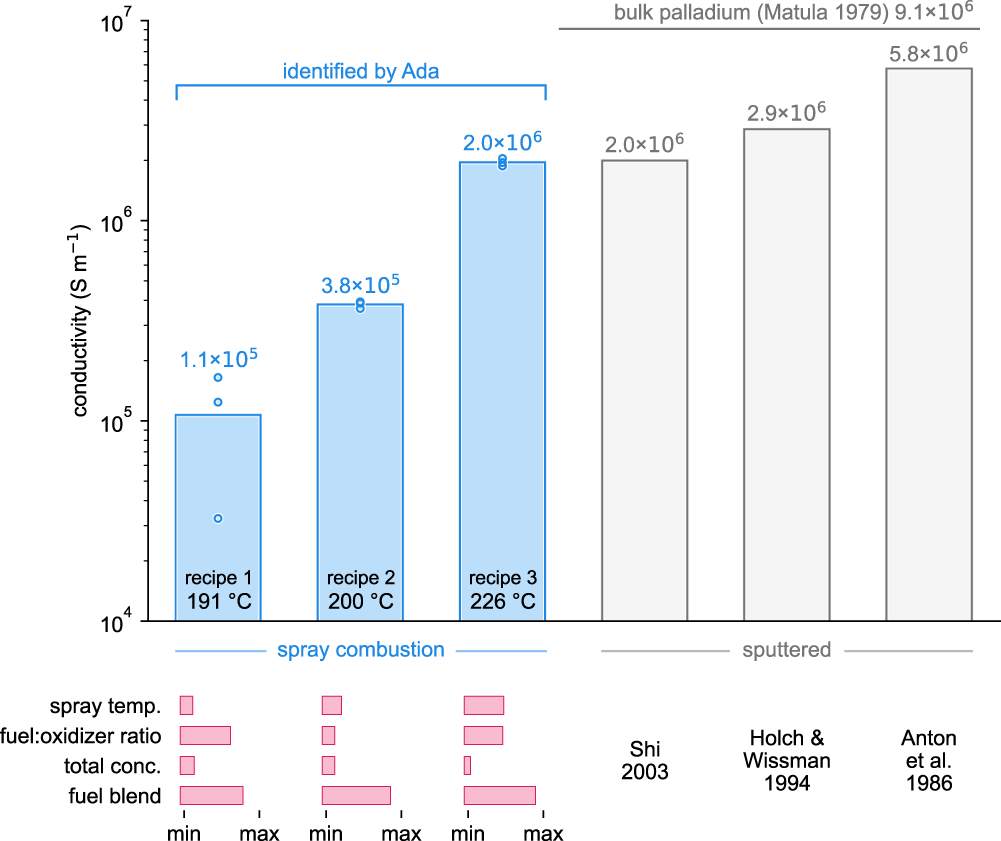

Fig. 6: Comparison between the conductivity of the spray-coated palladium films and sputtered films.
From: A self-driving laboratory advances the Pareto front for material properties
The conductivity values for sputtered films62,63,64 and bulk palladium61 are from previous literature. The spray coating recipes are taken directly from the Pareto front and are given in Supplementary Table 2. For the spray combustion data (see also Supplementary Table 3), each point shows the conductivity of one of the three replicate samples for each recipe. The bars show the average conductivity across all three replicates for each recipe.
