Fig. 4: Chemical species occupation in CMRO by EDS mapping.

From: Chemical medium-range order in a medium-entropy alloy

Fig. 4: Chemical species occupation in CMRO by EDS mapping.The alternative text for this image may have been generated using AI.

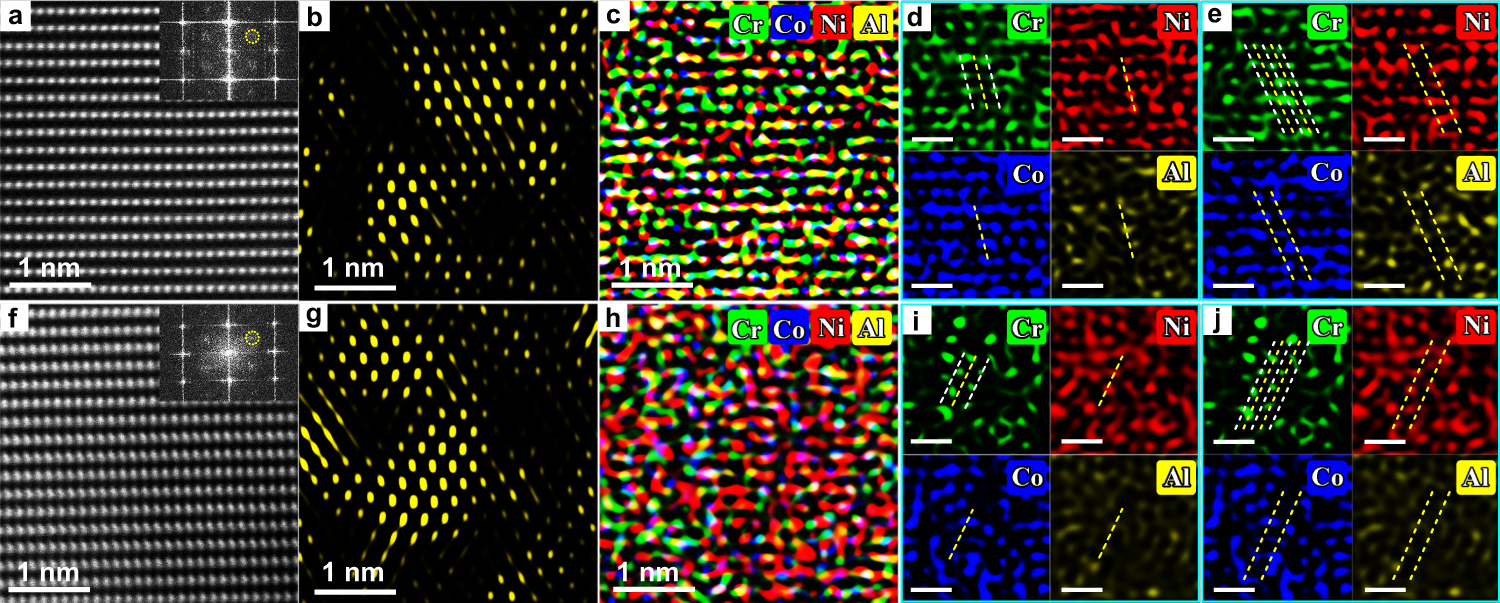

a HAADF image under [\(112\)] z.a. before tensile deformation. Inset: FFT pattern. b Corresponding IFFT image showing CMRO regions. c EDS map. d, e Close-up views of Cr, Ni, Co, and Al map, respectively, in an individual CSRO in d and CMRO region in e. All dashed white/yellow lines: Cr-enriched and Cr-depleted {\(\bar{3}11\)} planes. f–j Corresponding results after tensile deformation. Scale bars in (d, e, i, and j): 0.5 nm.
