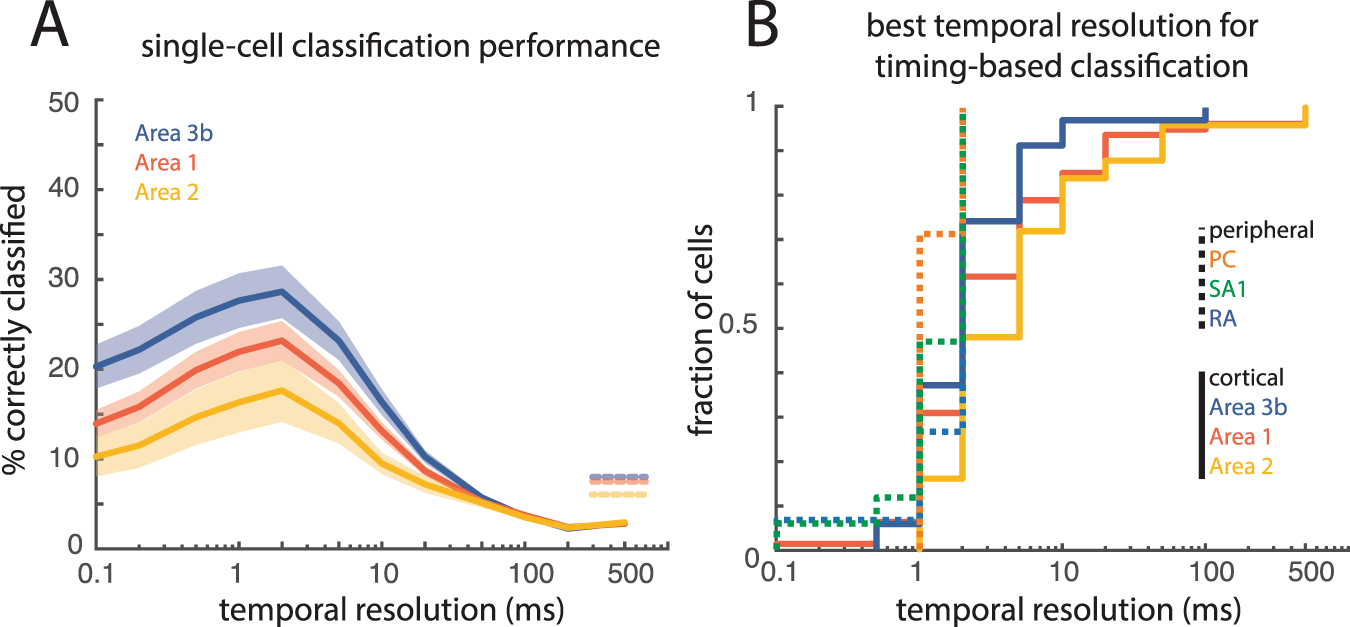

Fig. 4: Differences in the informativeness of temporal patterns across cortical fields.
From: Texture is encoded in precise temporal spiking patterns in primate somatosensory cortex
A Mean timing-based classification for individual neurons in areas 3b (n = 35, blue), 1 (n = 81, red), and 2 (n = 25, yellow). Shaded area represents standard error of the mean across neurons. Dashed lines on the right denote the mean classification performance based on firing rates for each area. B Cumulative distribution of the best decoding resolutions separated for nerve fibers (dashed lines; PC: orange, SA1: green, RA: blue) and cortical neurons (solid lines, 3b: blue, 1: red, 2: yellow).
