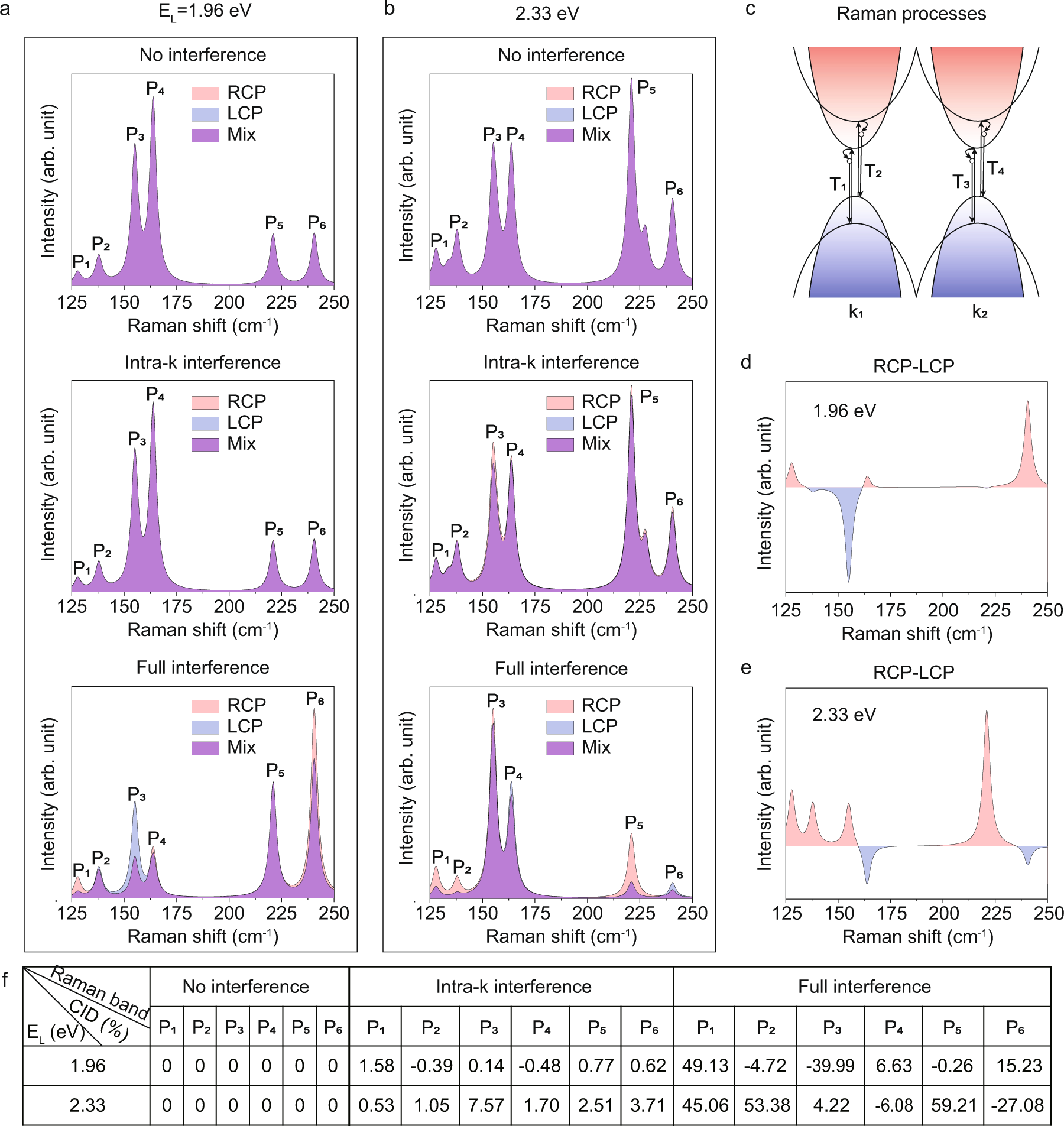

Fig. 3: Calculated results of chiral Raman scattering in 1L ReS2.
From: Quantum interference directed chiral raman scattering in two-dimensional enantiomers
Raman spectra from three different interference pathways (no interference, intra-k interference, and full interference) excited by both RCP and LCP for a 1.96 eV b 2.33 eV photon energies. c Schematics of different quantum pathways in Raman process. d, e Calculated CID spectra for 1.96 eV and 2.33 eV photon energies. f The calculated CID values of the six Raman modes for the three interference patterns.
