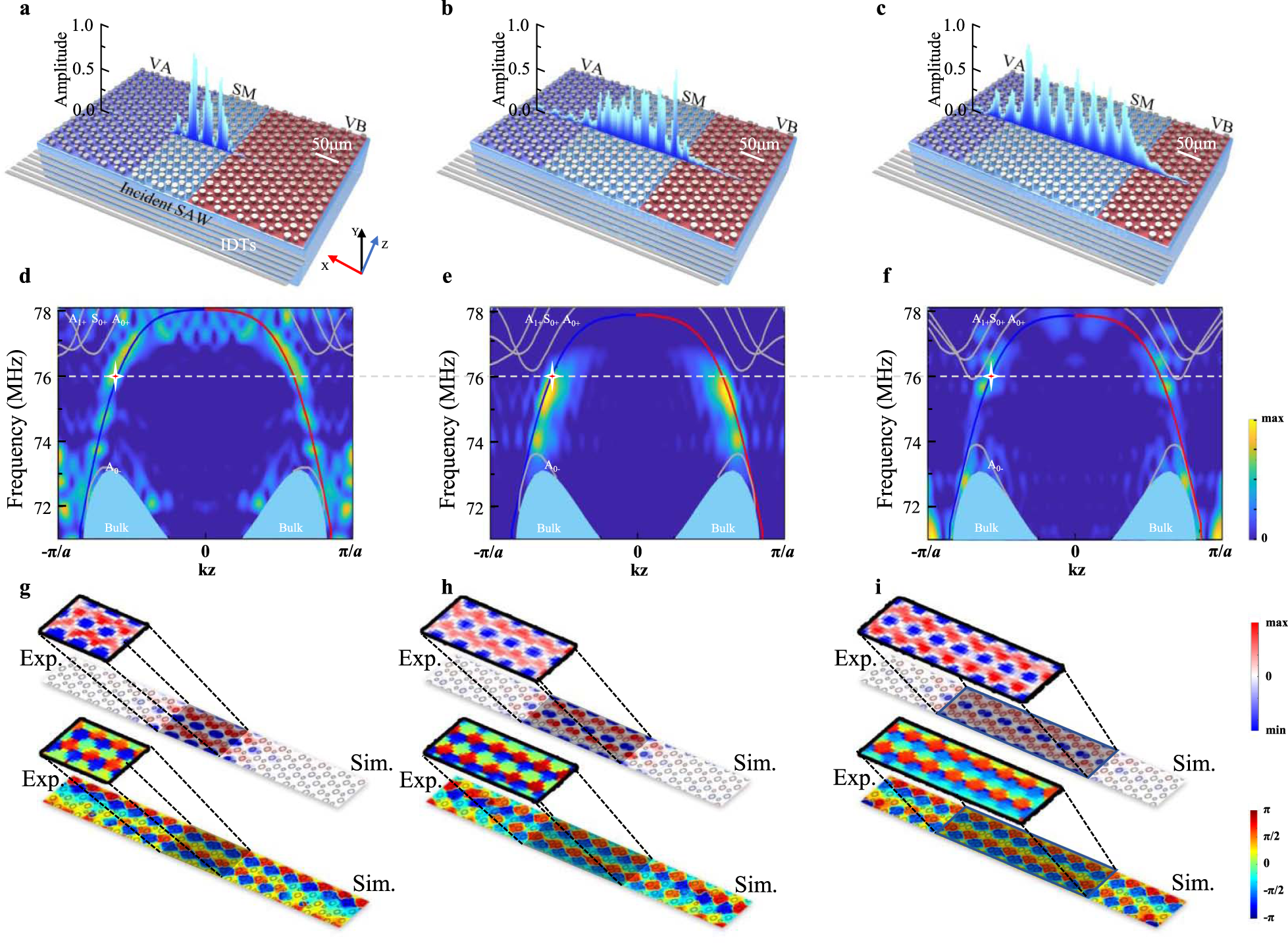

Fig. 2: Extended topological valley-locked states for SAWs.
From: Extended topological valley-locked surface acoustic waves
