Fig. 2: Area under the receiver operator characteristic (AUROC) curves for image and signal-based models.

From: Automated multilabel diagnosis on electrocardiographic images and signals

Fig. 2: Area under the receiver operator characteristic (AUROC) curves for image and signal-based models.

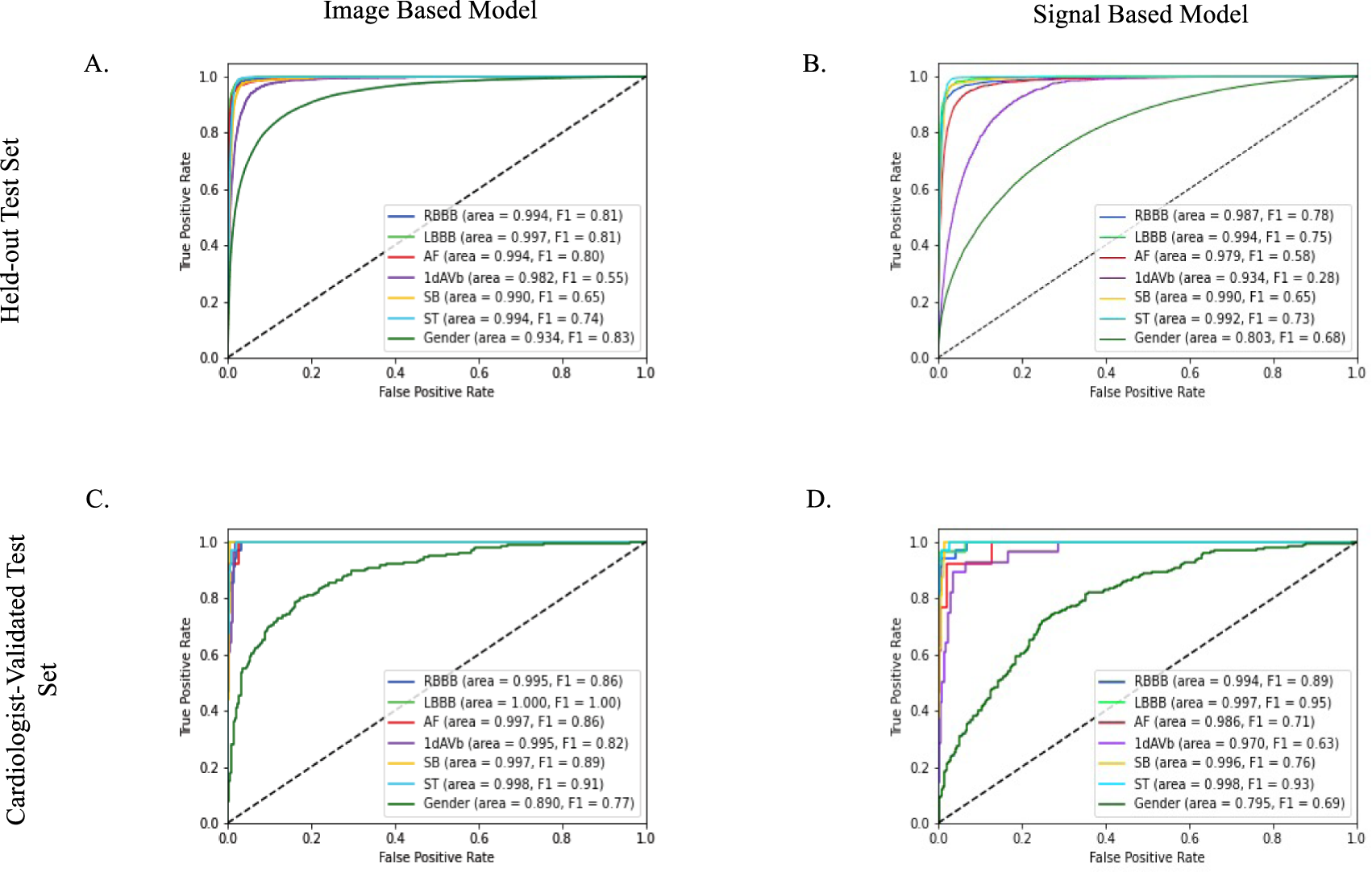

AUROC on held-out test set (A, image model; B, signal model) and cardiologist validated test set  (C, image model; D, signal model) are included in the 4 image panels. 1dAVB 1st degree AV block, AF atrial fibrillation, LBBB left bundle branch block, RBBB right bundle branch block, SB sinus bradycardia, ST sinus tachycardia.
