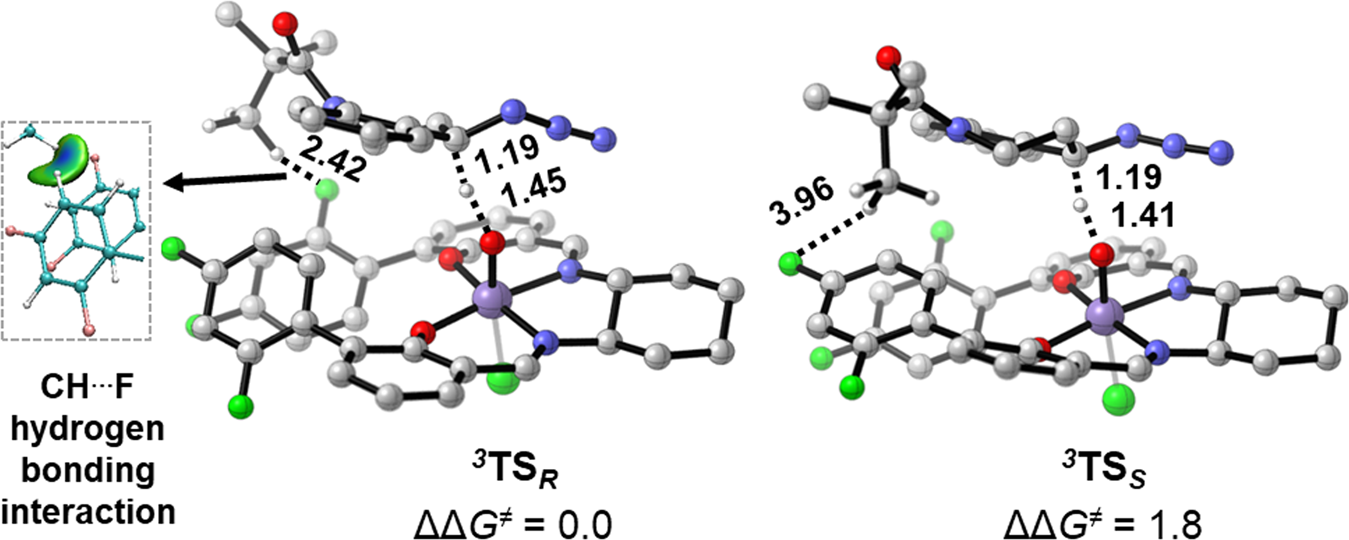

Fig. 7: Geometries and the relative Gibbs free energies of stereoselectivity-determining transition states.

Trivial hydrogen atoms are omitted for clarity. The isosurface of IGM analysis is 0.005. The bond distances are given in Å. All energies are given in kcal/mol.
