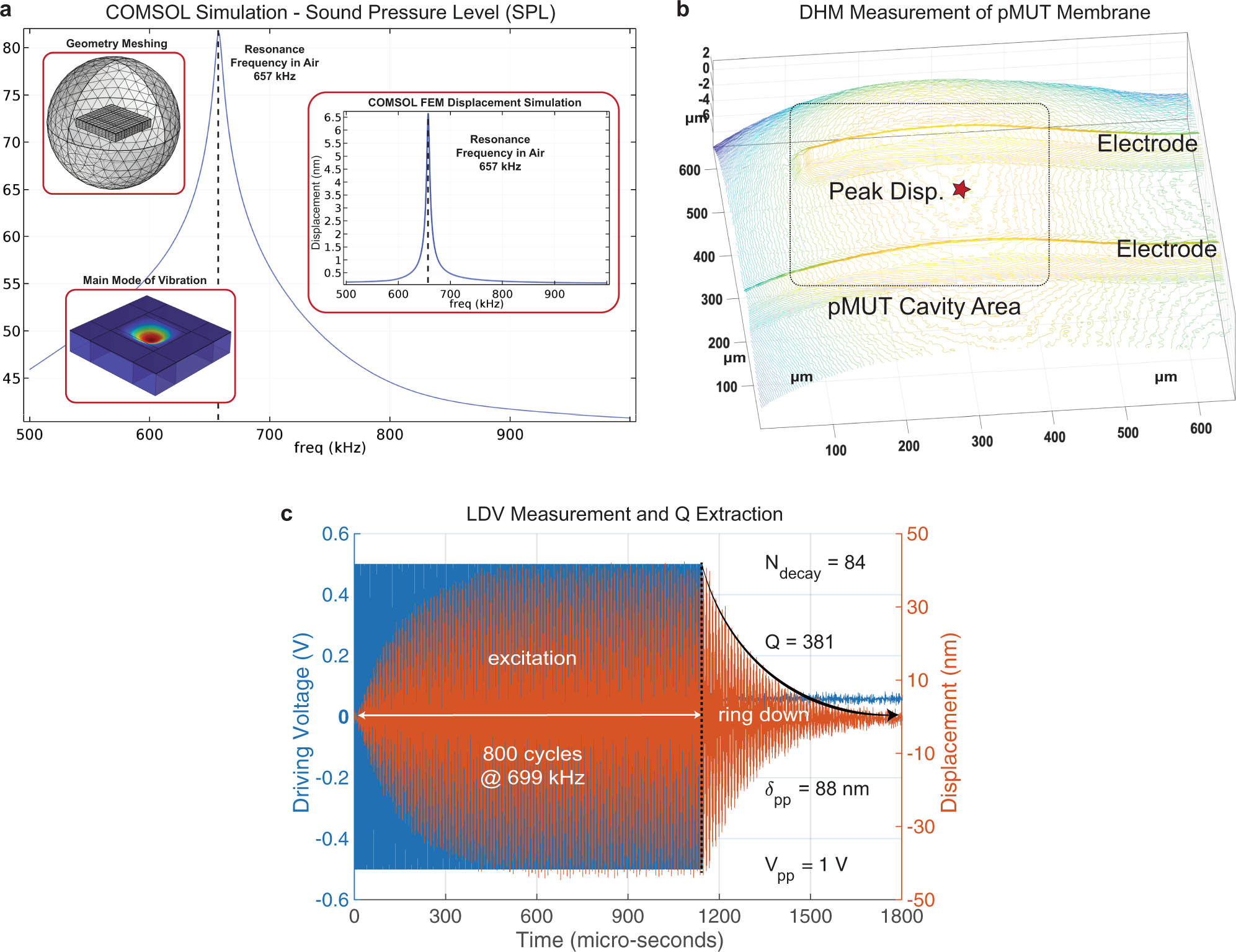

Fig. 6: LN pMUT simulation and air measurements.

a COMSOL Multiphysics Finite Element Analysis (FEA) simulation of an LN pMUT. b DHM measurement of the pMUT membrane displacement and its 3D reconstruction for mode analysis. c Quality factor extraction from the displacement of the pMUT membrane with the ring-down method.
