Fig. 3: BC-reduction induced climate anomalies in April and May modeled by the COVID-19 case in comparison with the SSP case.

From: Black carbon-climate interactions regulate dust burdens over India revealed during COVID-19

Fig. 3

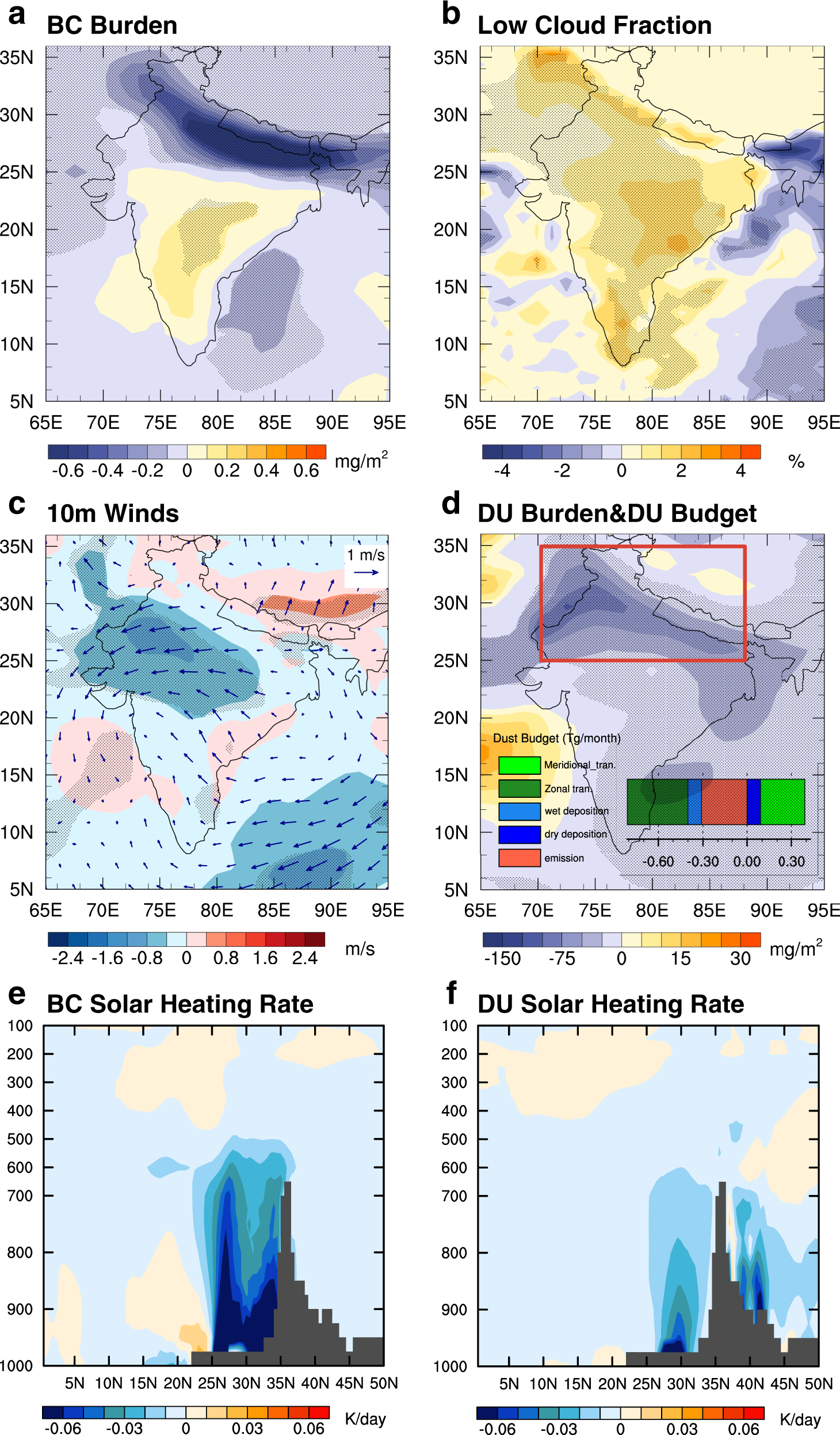

a BC burden. b Low cloud fraction. c Winds at 10 m. d Dust burden. The solar heating rate associated with e BC and f Dust. The bar chart imposed in (d) shows the difference in modeled dust budget between two cases. Differences with a confidence level greater than 90% are stippled using the Student’s t-test and Monte Carlo field significance test.
