Fig. 6: Summary of evoked neuronal activity. | Nature Communications

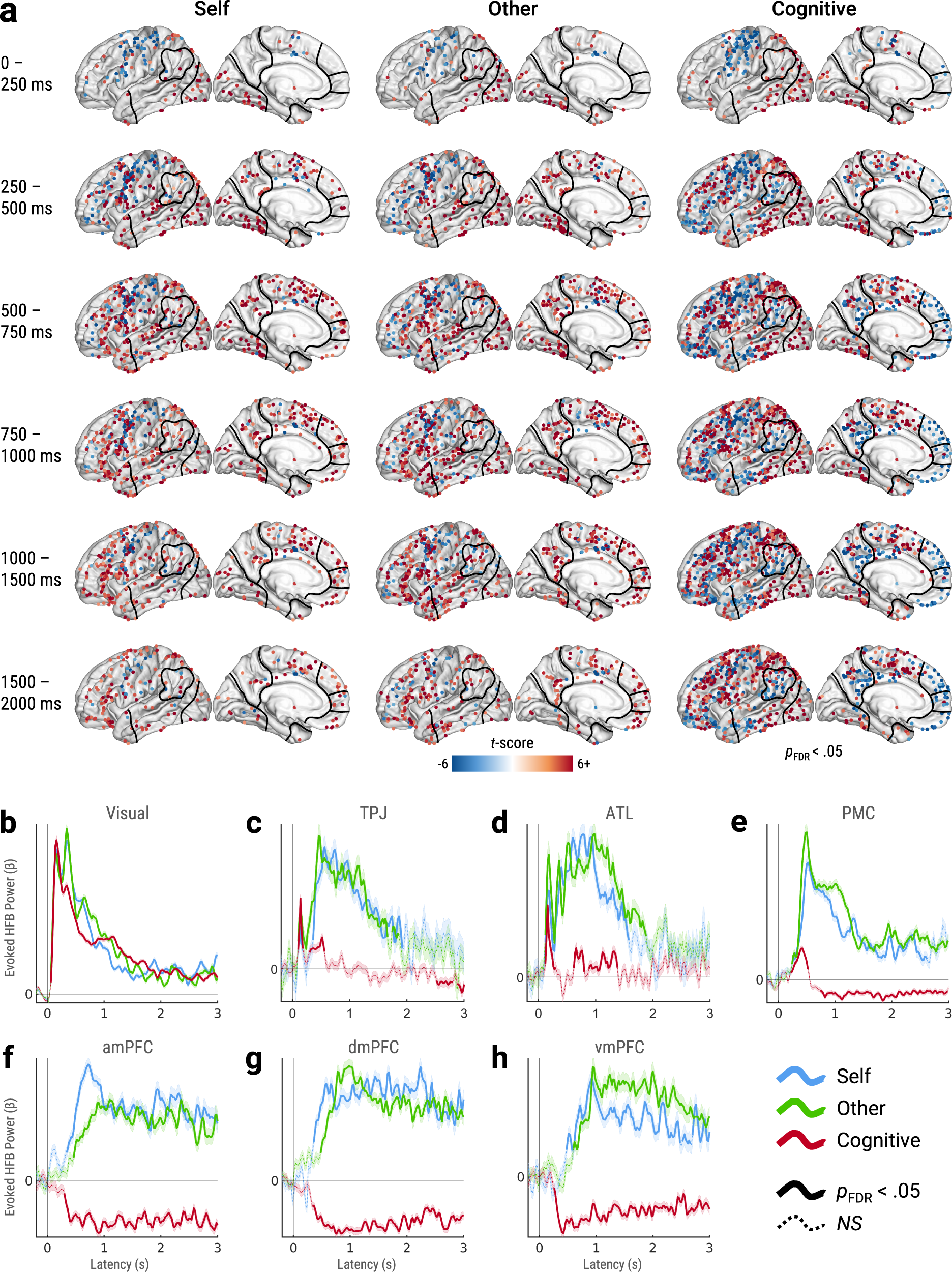

Fig. 6: Summary of evoked neuronal activity.

From: Electrocorticographic evidence of a common neurocognitive sequence for mentalizing about the self and others

Fig. 6

a Sites with significant HFB responses during specific time windows versus pre-stimulus baseline, colored by LMEM t-values (pFDR < 0.05, corrected across sites and time windows, two-tailed). All sites plotted on left hemisphere with approximate ROI outlines. b–h Grand-average timecourses of evoked HFB power (β) within ROIs (LMEM-estimated). Thick solid lines indicate significant responses versus pre-stimulus baseline (pFDR < 0.05, corrected across ROIs and timepoints, two-tailed). Thin dashed lines indicate nonsignificant responses. Shaded areas indicate standard error of β. Abbreviations: HFB = high-frequency broadband (70–180 Hz), LMEM = linear mixed-effects model, ROI = region-of-interest, Visual = visual cortex, ATL = anterior temporal lobe, TPJ = temporoparietal junction, PMC = posteromedial cortex, amPFC = anteromedial prefrontal cortex, dmPFC = dorsomedial prefrontal cortex, vmPFC = ventromedial prefrontal cortex. Source data are provided as a Source Data file.
