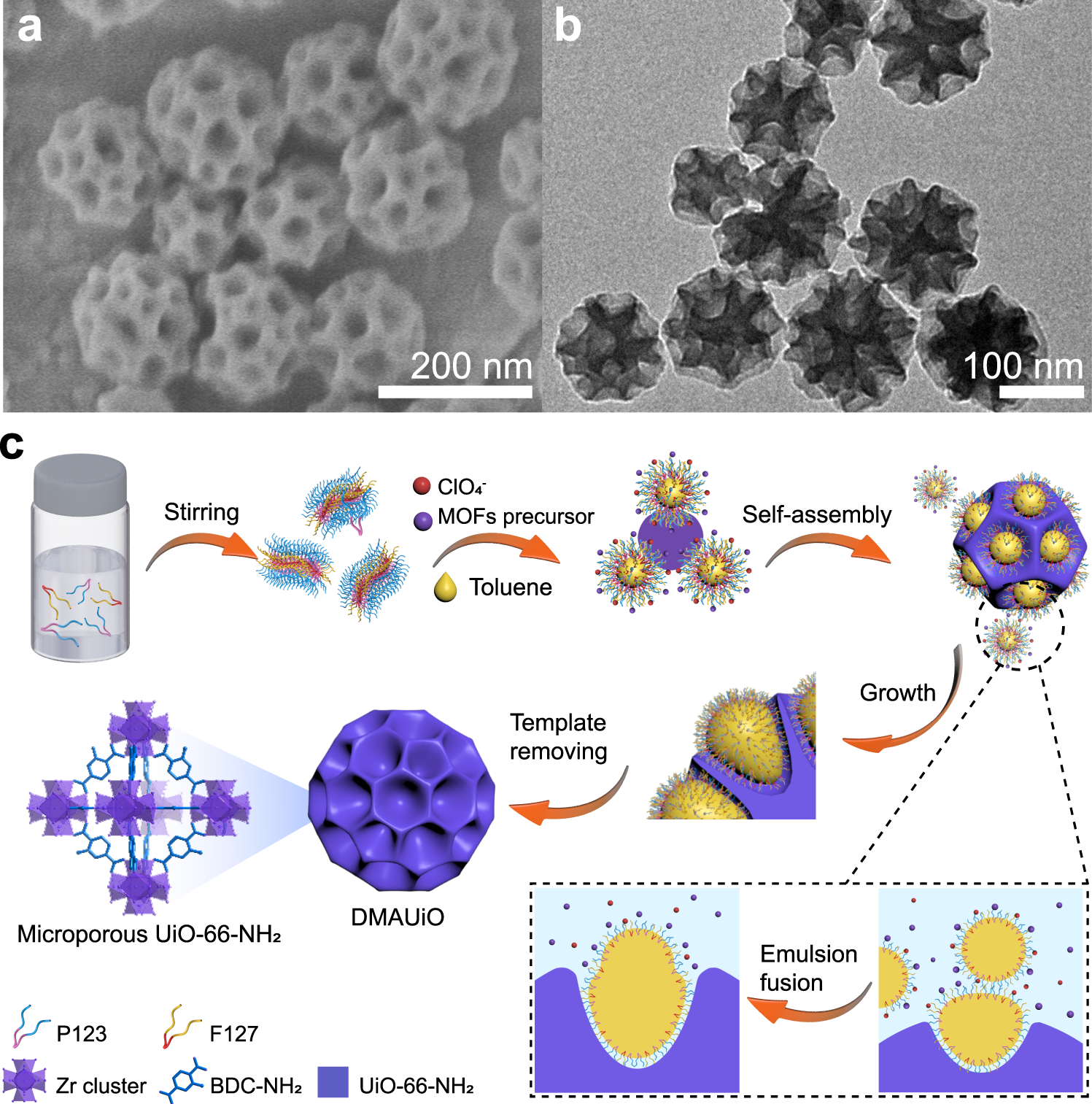

Fig. 1: Schematic illustration of the formation process of the DMAUiO.

a SEM and b TEM images of the DMAUiO synthesized with P123/F127/toluene mass ratio of 1/0.5/1.046. c Schematic illustration for the synthesis of the DMAUiO nanospheres with toluene as the oil phase in nanoemulsions.
