Fig. 2: Decomposition plot of TEKR GPS geodetic data.

From: Creep-dilatancy development at a transform plate boundary

Fig. 2

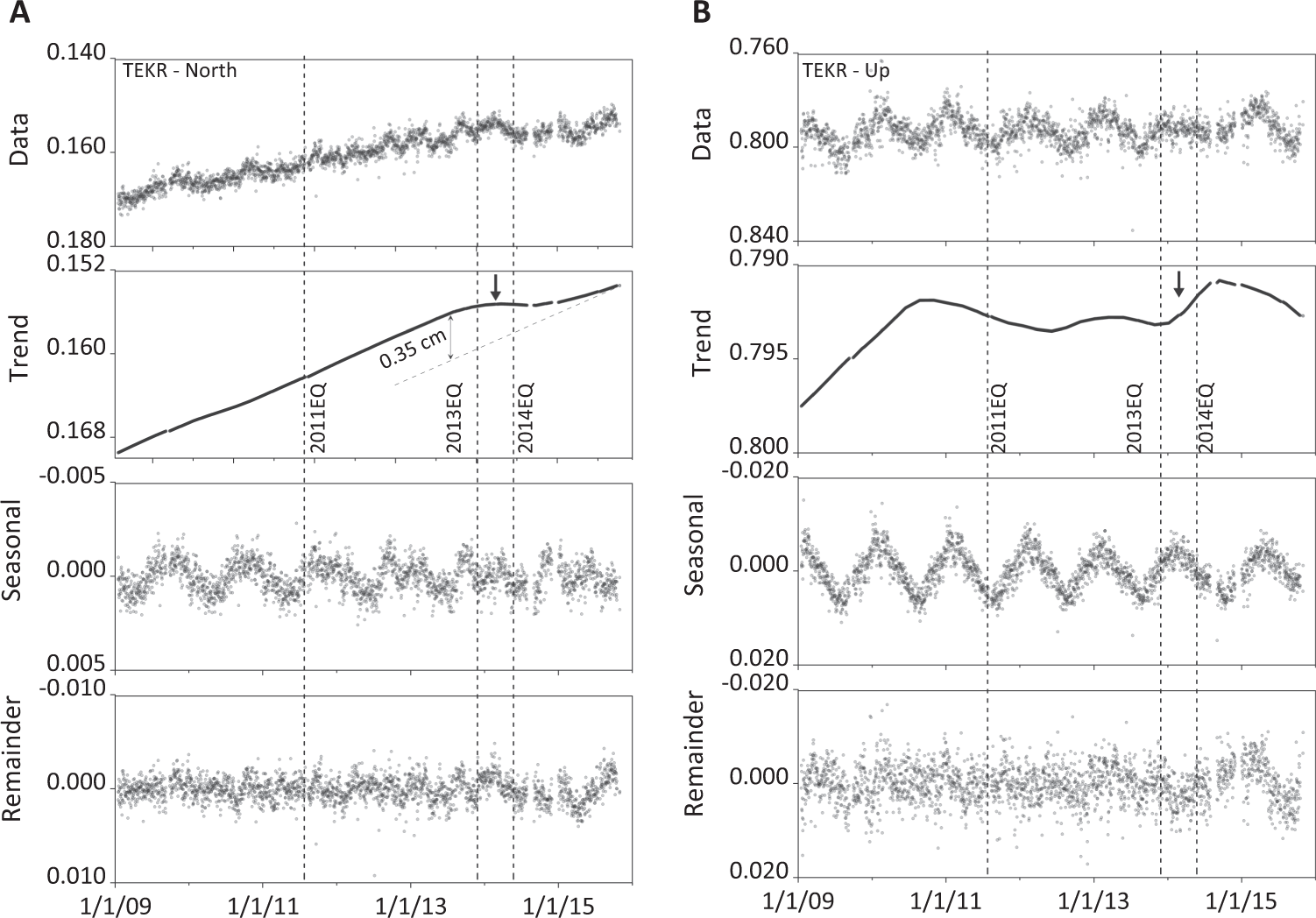

A Northern displacement and B vertical displacement. The unit on the vertical scale is meters. The horizontal scale uses the convention of day, month, and year. The timing of the three earthquakes (2011EQ, 2013EQ, and 2014EQ) are displayed by dashed vertical lines.
