Fig. 3: Time series data.
From: Creep-dilatancy development at a transform plate boundary

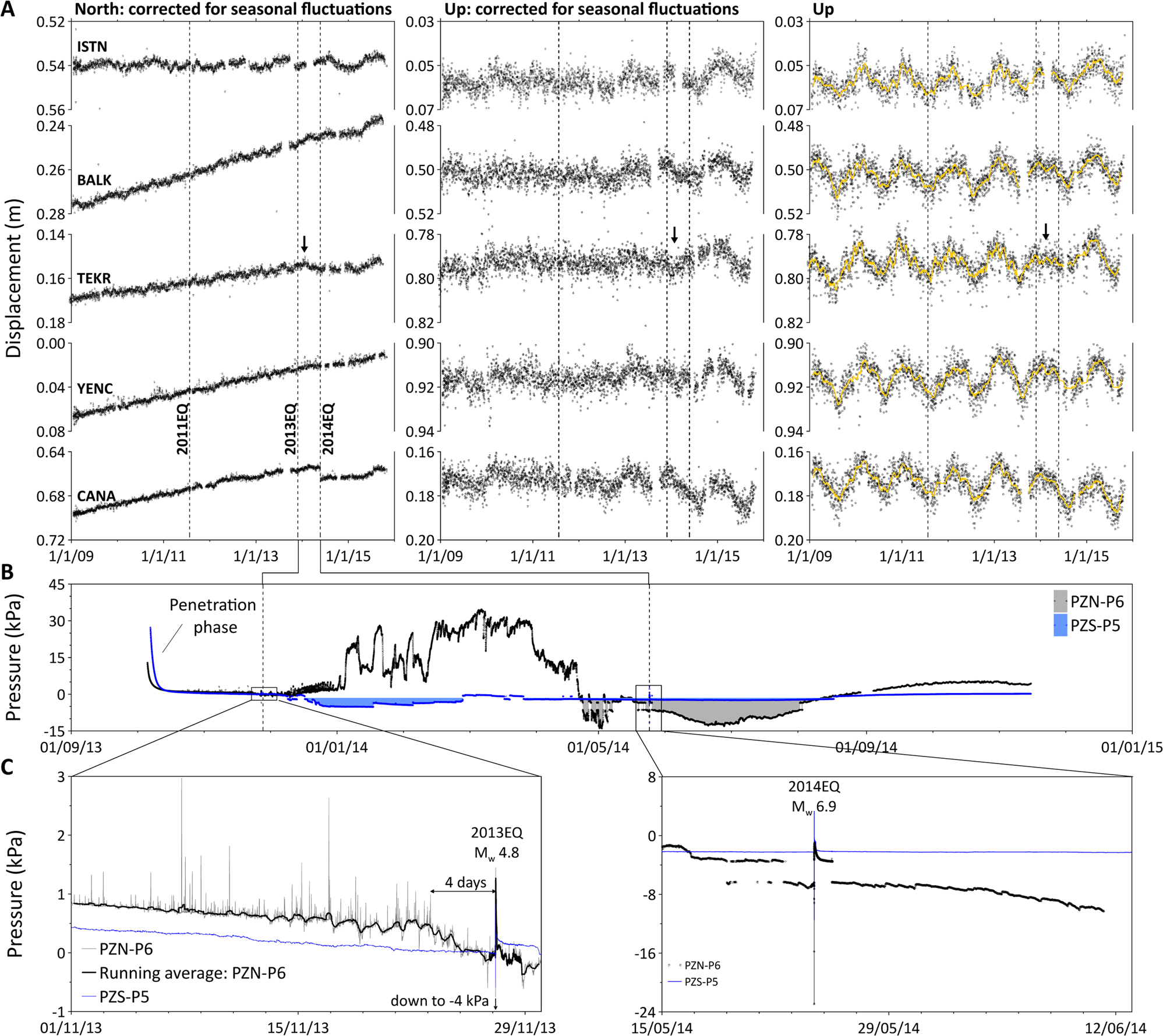

A Displacement time series (from left to right: north and up components corrected for seasonal fluctuations and non-corrected up component) for five sites surrounding the Sea of Marmara. From west to east: CANA, YENC, TEKR, BALK, and ISTN stations (locations in Fig. 1A). The three vertical dashed lines indicate the timing of three neighboring earthquakes (25 July 2011—2011EQ, 2013EQ, and 2014EQ). The range of the vertical axes is adjusted to better visualize the majority of the data. Arrows indicate perturbations that occur between 2013EQ and 2014EQ. B Pore-pressure time series measured at depths below the seabed of 7.08 m (PZN-P6) and 6.28 m (PZS-P5). C Enlargement diagrams showing the pore-pressure evolutions during 2013EQ and 2014EQ. The horizontal scale uses the convention of day, month, and year.
