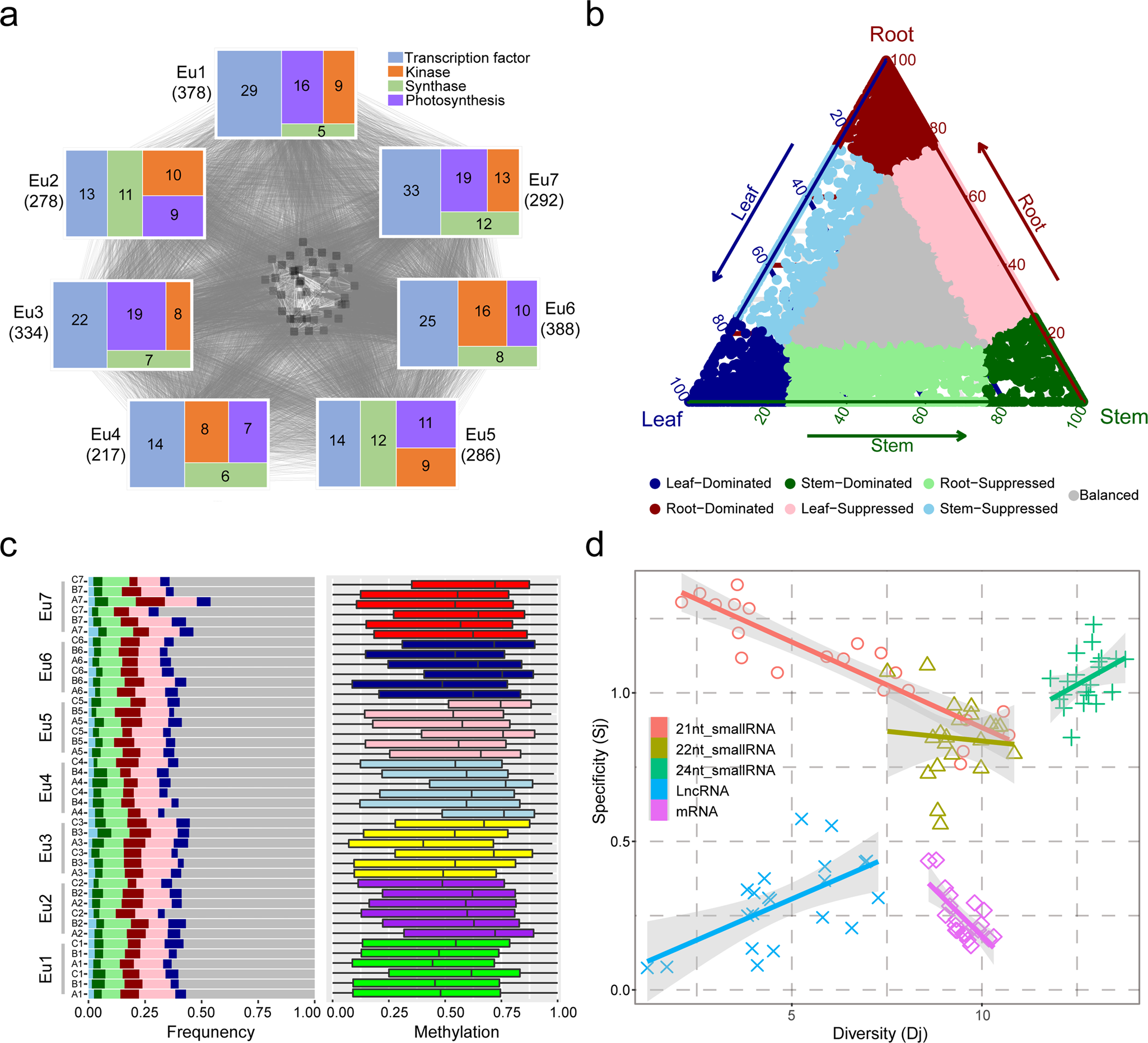

Fig. 4: Evolutionary dynamics of the ancestral core-eudicot genes in extant Panax stipuleanatus genome.
