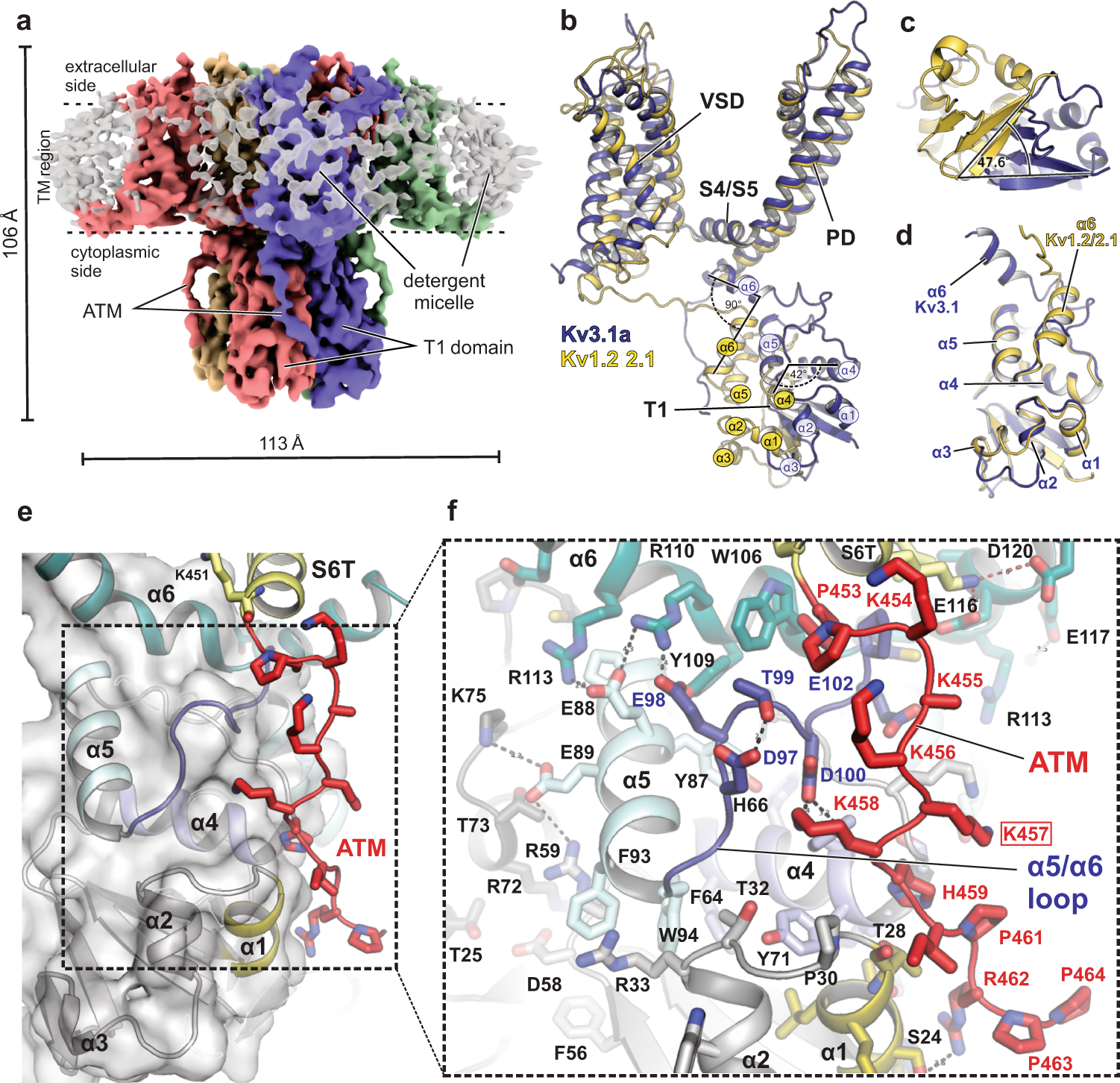

Fig. 1: Kv3.1a full-length structure showing alternative T1 arrangement compared to Kv1.2/2.1 and electrostatic ATM/T1 interactions.
From: Cryo-EM structure of the human Kv3.1 channel reveals gating control by the cytoplasmic T1 domain
