Fig. 4: Segmentation comparisons.
From: Membrane marker selection for segmenting single cell spatial proteomics data

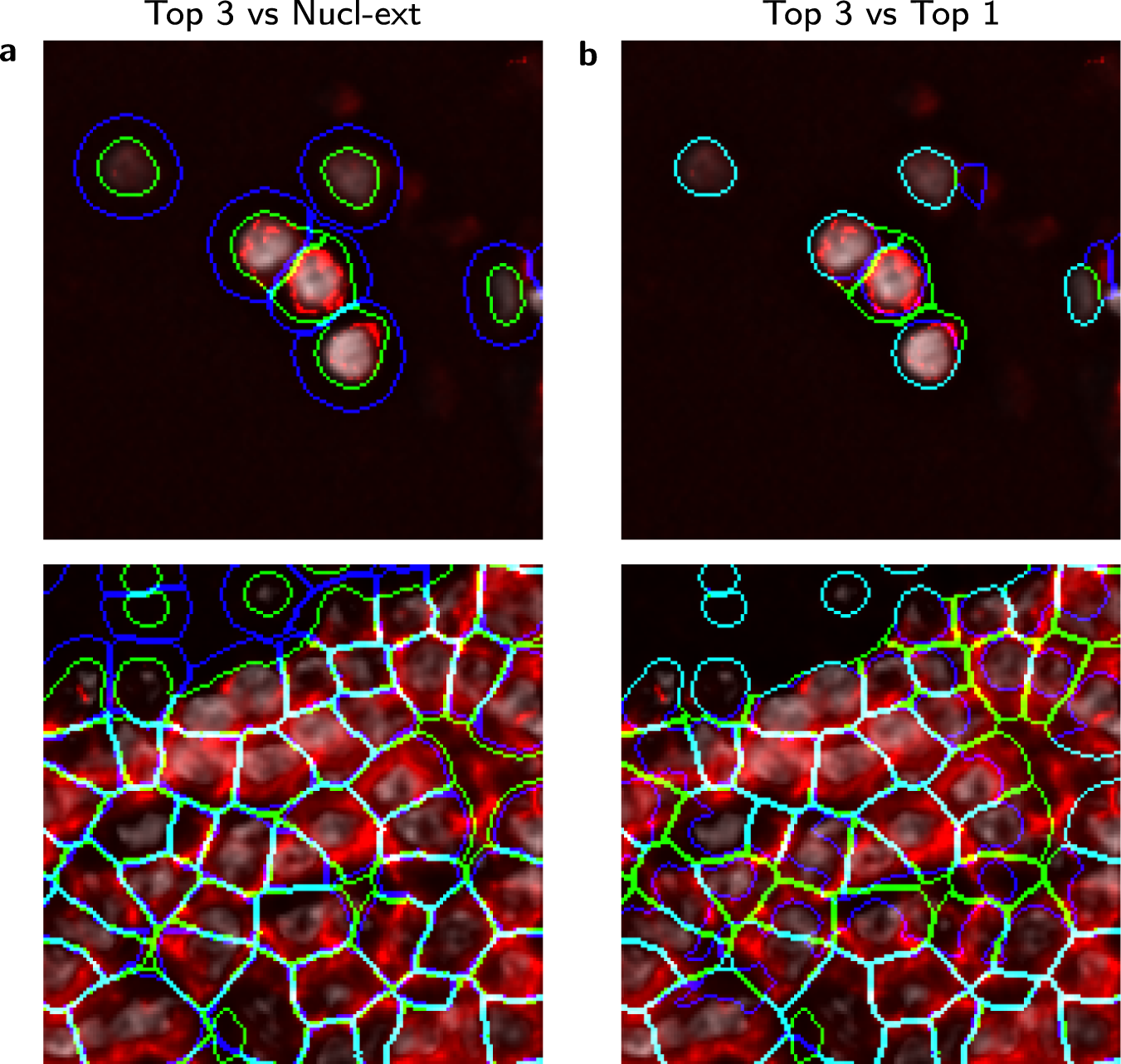

a Comparison of segmentations (from dataset 5, Supplementary Table 1) between RAMCES with the top 3 proteins combined (Top 3) and the default Cytokit10 nucleus extension method (Nucl-ext), and b between using the top single (Top 1) and top 3 ranked membrane markers. In each image, green contours are the Top 3 segmentation, and blue contours show the segmentation we are comparing to. Cyan indicates that the two segmentations overlap. The red channel shows the combined weighted membrane image from the top 3 ranked proteins, and the gray channel shows the DAPI (nucleus) stain. The top images come from tile X = 4, Y = 5, and the bottom images come from tile X = 4, Y = 4 of dataset 5.
