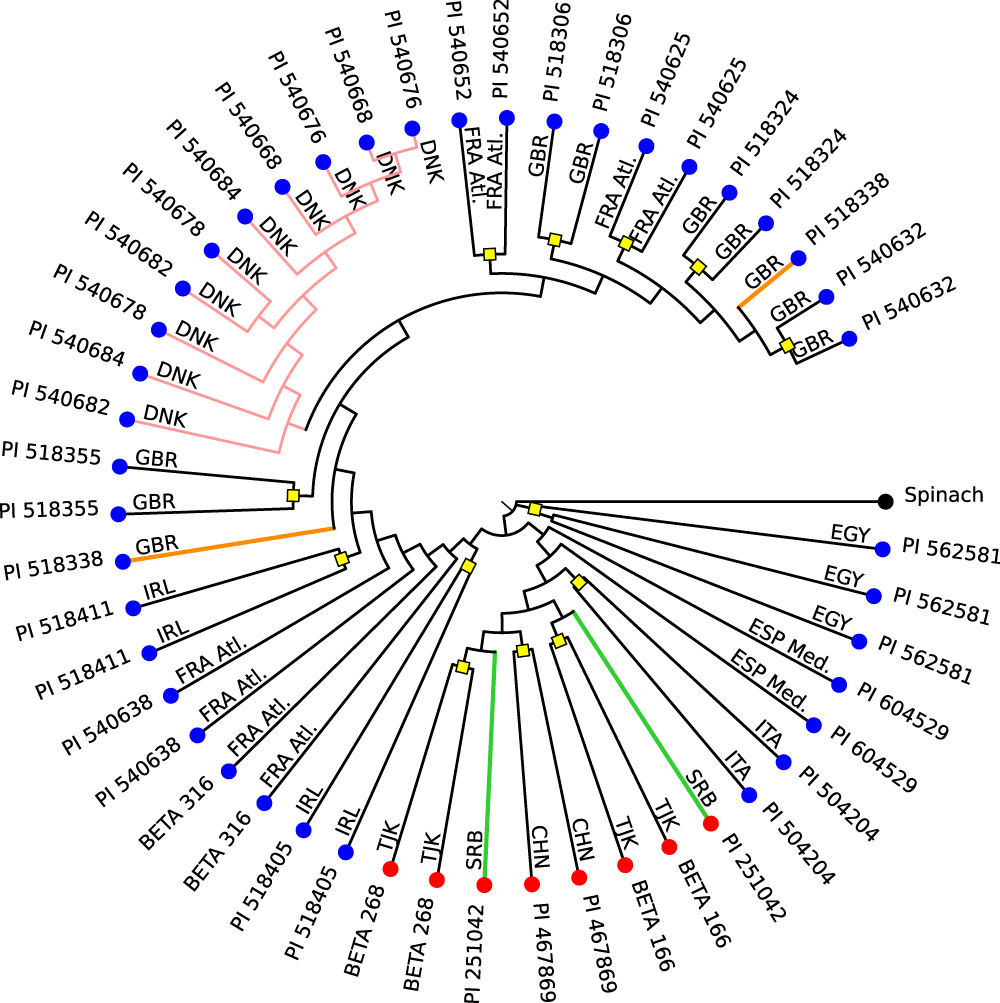

Fig. 2: Phylogenetic tree of 23 Beta accessions and spinach as outgroup based on Mash distances calculated from whole-genome Illumina sequencing data.
From: Genomic distances reveal relationships of wild and cultivated beets
The 47 samples represent 23 Beta accessions. Pairwise clustering according to their accession identifiers is indicated by highlighting the respective nodes with a yellow square, discordant clustering is indicated by colored branches. Country designations are given at each branch, species designations are reflected in the leaf colors (red: B. v. vulgaris, blue: B. v. maritima, black: outgroup, Med.: Mediterranean, Atl: Atlantic). Source data are provided as a Source Data file.
